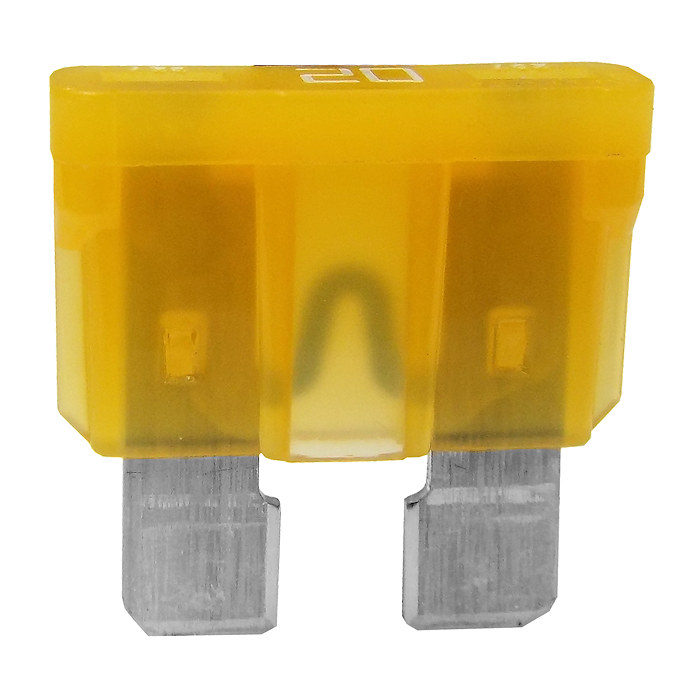

Durite 20A Yellow Standard Automotive Blade Fuse | Re: 0-375-20

£2.03  Excl. VAT
  (£2.44 Inc. VAT)
RRP:  £2.28  Excl. VAT
Initial Savings:  £0.25
Earn 2 Loyalty Points
Available


Weight:  20 g


Model:  0-375-20
Bar Code:  5056119110197
Part Number:  0-375-20
Brand:  Durite
Colour  Yellow
Voltage  12V/24V DC
Amperage  20A
Material  Brass/Plastic


 Durite 12V-24Vdc 20A Yellow standard blade or spade fuse, used for automotive cable and wiring as surge protection.

  • Yellow colour coded for easy identification.
  • Voltage: 12 and 24 Volts DC (32 Volts DC Maximum).
  • 20 Amps continuous rating, 40 Amps blow rating.
  • Pack Quantity: 10, 50 and 200 pieces.

Dimensions

  • Width: 19.0mm.
  • Length including blade: 19.0mm.
  • Thickness: 5.0mm.

About The Standard Yellow 20A Spade Fuse

 Durite’s standard Yellow coloured blade fuse style is an essential and compact solution to any automotive wiring and component protection system. Rated for 20 Amps continuous use, this 12V-24Vdc fuse offers reliable protection from circuit overloads. It comes in packs of 10, 50 and 200 pieces and can be used in a vehicle's fusebox or with inline holders for circuit overload protection. The 40 Amps blow rating is perfect for intermittent circuit loads, offering a higher level of surge protection for your car or commercial vehicle and its components. Durite’s Yellow standard spade fuse is medium-sized and the most popular in the Durite automotive blade fuse family.

Fuse Ratings

 The rating for 20A continuous use is based on a circuit load being always on (constant), and the 40A blow rating is based on an intermittent circuit load for surge protection.

 Continuous ratings for fuses are based on the fact they should blow at the specified amperage when the circuit is always on. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.

Specifications

Type Standard Automotive Blade Fuse
Voltage 12 to 24 Volts DC (32 Volts DC Maximum)
Current Rating 20 Amps - Continuous
Blow Rating (from cold) 40 Amps - Intermittent
Colour Yellow
Weight 4g
