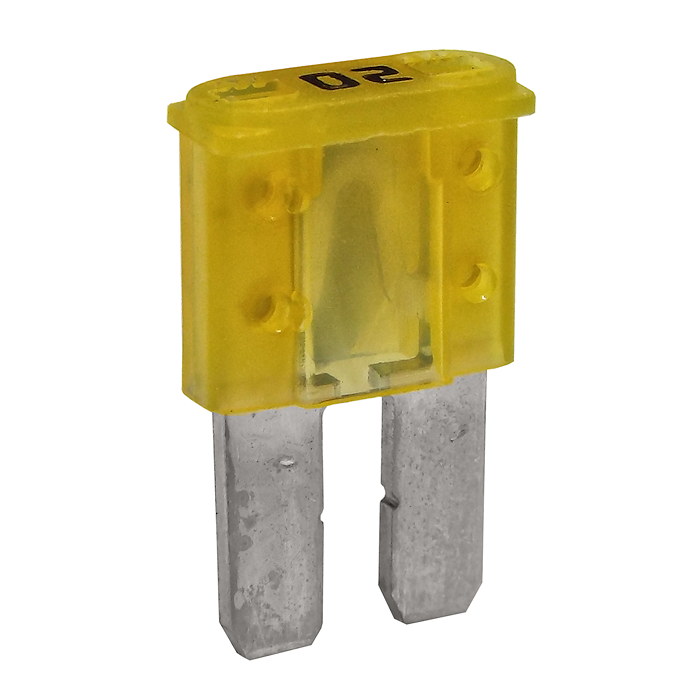

Durite 20A Yellow MICRO2 Automotive Blade Fuse | Re: 0-376-80

£5.13  Excl. VAT
  (£6.16 Inc. VAT)
RRP:  £5.76  Excl. VAT
Initial Savings:  £0.63
Earn 5 Loyalty Points
Available


Weight:  10 g


Model:  0-376-80
Bar Code:  5056119140279
Part Number:  0-376-80
Brand:  Durite
Colour  Yellow
Voltage  12V/24V DC
Amperage  20A
Material  Zinc Alloy/Silver/PA66


 Durite's MICRO2 Littelfuse 327 series micro spade fuses with a single fuse element.

  • MICRO2 2 x blade fuse with 1 fuse element.
  • Colour Coded: Yellow
  • Continuous Rating: 20A
  • Blow Rating: 40A
  • Pack quantity: 10 and 50 pieces.

Dimensions

  • Width: 9.1mm Maximum.
  • Length: 15.5mm.
  • Thickness: 3.8mm.

About The MICRO2 Blade Fuse

 Durite's Littelfuse 327 MICRO2 fuse has a single fuse element and is the new standard for vehicle circuit protection. The sub-miniature design meets the need for more circuits to be protected while utilizing less space. The micro fuse has the ability to cope with high temperatures in adverse environments, making the MICRO2 fuse a recommended choice for protection.

 The smaller and compact type of fuse from the Durite automotive blade fuse family, the yellow coloured MICRO2 blade fuse offers a 20 Amps continuous circuit load protection and a 40 Amps blow rating. At Arc Components Ltd we offer the 327 Series MICRO2 blade fuses in many different amperages, ranging from 5A to 30A, with a 32Vdc rating.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.

Specifications

Type Single element fuse
Colour Code Yellow
Continuous Rating 20A
Blow Rating 40A
Voltage Rating 32Vdc
Interrupting Ratings 1000A at 32Vdc
*Component Temperature Range -40˚C to +125˚C
**System Temperature Range -40°C to +105°C
105°C is a typical system-level temperature requirement.
Terminals Silver (Ag) plated zinc alloy, 2.8mm
Housing Material PA66
Conforms to SAE 2741 and ISO 8820-3 in reference to electrical, mechanical and environmental performance requirements.
Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

Durite 10A Red MICRO2 Automotive Blade Fuse | Re: 0-376-70
Durite 10A Red MICRO2 Automotive Blade Fuse | Re: 0-376-70

Durite automotive MICRO2 blade 10A Red fuses. Width: 9.1mm and length including blade: 15.3mm.

Available
 Reference: 0-376-70 From:  £5.13
Durite 15A Blue MICRO2™ Automotive Blade Fuse | Re: 0-376-75
Durite 15A Blue MICRO2™ Automotive Blade Fuse | Re: 0-376-75

Durite automotive MICRO2 blade 15A Blue fuses. Width: 9.1mm and length including blade: 15.3mm.

Available
 Reference: 0-376-75 From:  £5.13
Durite 30A Green MICRO2™ Automotive Blade Fuse | Re: 0-376-83
Durite 30A Green MICRO2™ Automotive Blade Fuse | Re: 0-376-83

Durite automotive MICRO2 blade 30A Green fuses. Width: 9.1mm and length including blade: 15.3mm.

Available
 Reference: 0-376-83 From:  £5.13


Related Products
Durite 10A Red MICRO2 Automotive Blade Fuse | Re: 0-376-70
Durite 10A Red MICRO2 Automotive Blade Fuse | Re: 0-376-70

Durite automotive MICRO2 blade 10A Red fuses. Width: 9.1mm and length including blade: 15.3mm.

Available
 Reference: 0-376-70 From:  £5.13
Durite 15A Blue MICRO2™ Automotive Blade Fuse | Re: 0-376-75
Durite 15A Blue MICRO2™ Automotive Blade Fuse | Re: 0-376-75

Durite automotive MICRO2 blade 15A Blue fuses. Width: 9.1mm and length including blade: 15.3mm.

Available
 Reference: 0-376-75 From:  £5.13
Durite 20A Yellow Mini Blade or Spade Automotive Fuse | Re: 0-372-20
Durite 20A Yellow Mini Blade or Spade Automotive Fuse | Re: 0-372-20

Durite Yellow coloured 20A MINI automotive spade fuse. 11.0mm wide fuses with a length including the blades of 16.0mm, thickness: 4.0mm.

Available
 Reference: 0-372-20 From:  £3.33

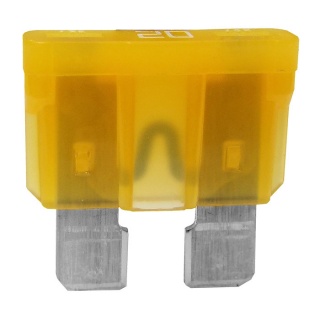

Durite 20A Yellow Standard Automotive Blade Fuse | Re: 0-375-20
