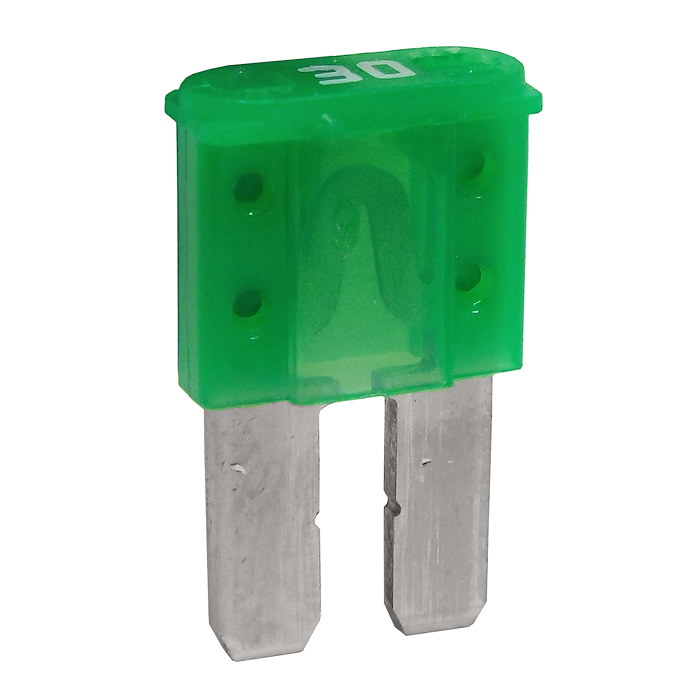

Durite's MICRO2 Littelfuse 327 series micro spade fuses with a single fuse element.
- MICRO2 2 x blade fuse with 1 fuse element.
- Colour Coded: Green
- Continuous Rating: 30A
- Blow Rating: 60A
- Pack quantity: 10 and 50 pieces.
- Width: 9.1mm Maximum.
- Length: 15.5mm.
- Thickness: 3.8mm.
About The MICRO2 Blade Fuse
Durite's Littelfuse 327 MICRO2 fuse has a single fuse element and is the new standard for vehicle circuit protection. The sub-miniature design meets the need for more circuits to be protected while utilizing less space. The micro fuse has the ability to cope with high temperatures in adverse environments, making the MICRO2 fuse a recommended choice for protection.
The smaller and compact type of fuse from the Durite automotive blade fuse family, the green coloured MICRO2 blade fuse offers a 30 Amps continuous circuit load protection and a 60 Amps blow rating. At Arc Components Ltd we offer the 327 Series MICRO2 blade fuses in many different amperages, ranging from 5A to 30A, with a 32Vdc rating.
Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
|Type ||Single element fuse |
|Colour Code ||Green |
|Continuous Rating ||30A |
|Blow Rating ||60A |
|Voltage Rating ||32Vdc |
|Interrupting Ratings ||1000A at 32Vdc |
|*Component Temperature Range ||-40˚C to +125˚C |
|**System Temperature Range ||-40°C to +105°C |
105°C is a typical system-level temperature requirement.
|Terminals ||Silver (Ag) plated zinc alloy, 2.8mm |
|Housing Material ||PA66 |
|Conforms to ||SAE 2741 and ISO 8820-3 in reference to electrical, mechanical and environmental performance requirements. |
