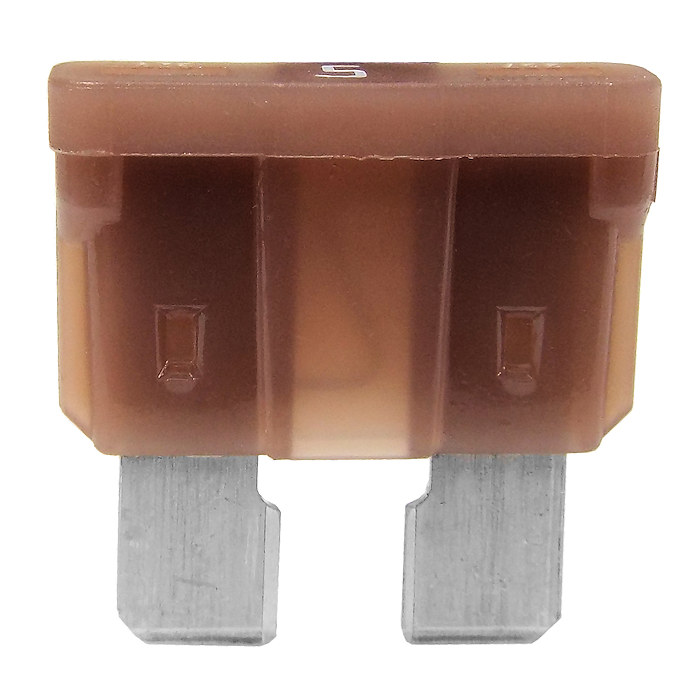

Durite 5A Tan Standard Automotive Blade Fuse | Re: 0-375-05

£2.07 Excl. VAT
RRP £2.42 Excl. VAT
(£2.48 Inc. VAT)
Initial Savings
£0.35
Earn 2 Loyalty Points

Available
Model
0-375-05
Bar Code
5056119110159
Part Number
0-375-05
Brand
Durite
Colour
Tan
Voltage
12V/24V DC
Amperage
5A
Material
Brass/Plastic
Ship Weight
15 g


 Durite 12V-24Vdc 5A Tan standard blade or spade fuse, used for automotive cable and wiring as surge protection.

  • Tan colour coded for easy identification.
  • Voltage: 12 and 24 Volts DC (32 Volts DC Maximum).
  • 5 Amps continuous rating, 10 Amps blow rating.
  • Pack Quantity: 10, 50 and 200 pieces.

Dimensions

  • Width: 19.0mm.
  • Length including blade: 19.0mm.
  • Thickness: 5.0mm.

About The Standard Tan 5A Spade Fuse

 Durite’s standard Tan coloured blade fuse style is an essential and compact solution to any automotive wiring and component protection system. Rated for 5 Amps continuous use, this 12V-24Vdc fuse offers reliable protection from circuit overloads. It comes in packs of 10, 50 and 200 pieces and can be used in a vehicles fusebox or with inline holders for circuit overload protection. The 10 Amps blow rating is perfect for intermittent circuit loads, offering a higher level of surge protection for your car or commercial vehicle and its components. Durite’s Tan standard spade fuse is medium-sized and the most popular in the Durite automotive blade fuse family.

Fuse Ratings

 The rating for 5A continuous use is based on a circuit load being always on (constant), and the 10A blow rating is based on an intermittent circuit load for surge protection.

 Continuous ratings for fuses are based on the fact they should blow at the specified amperage when the circuit is always on. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.

Specifications

Type
Standard Automotive Blade Fuse
Voltage
12 to 24 Volts DC (32 Volts DC Maximum)
Current Rating
5 Amp - Continuous
Blow Rating (from cold)
10 Amps - Intermittent
Colour
Tan
Weight
4g
