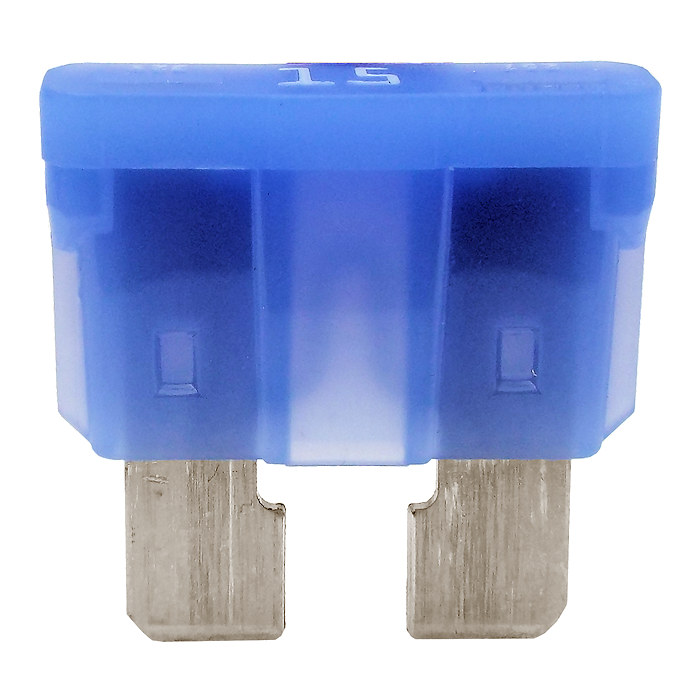

Durite 15A Blue Standard Automotive Blade Fuse | Re: 0-375-15

£2.03  Excl. VAT
  (£2.44 Inc. VAT)
RRP:  £2.28  Excl. VAT
Initial Savings:  £0.25
Earn 2 Loyalty Points
Available


Weight:  20 g





Model:  0-375-15
Bar Code:  5056119110180
Part Number:  0-375-15
Brand:  Durite
Colour:  Blue
Voltage:  12V/24V DC
Amperage:  15A
Material:  Brass/Plastic


 Durite 12V-24Vdc 15A Blue standard blade or spade fuse, used for automotive cable and wiring as surge protection.

  • Blue colour coded for easy identification.
  • Voltage: 12 and 24 Volts DC (32 Volts DC Maximum).
  • 15 Amps continuous rating, 30 Amps blow rating.
  • Pack Quantity: 10, 50 and 200 pieces.

Dimensions

  • Width: 19.0mm.
  • Length including blade: 19.0mm.
  • Thickness: 5.0mm.

About The Standard Blue 15A Spade Fuse

 Durite’s standard Blue coloured blade fuse style is an essential and compact solution to any automotive wiring and component protection system. Rated for 15 Amps continuous use, this 12V-24Vdc fuse offers reliable protection from circuit overloads. It comes in packs of 10, 50 and 200 pieces and can be used in a vehicle's fusebox or with inline holders for circuit overload protection. The 30 Amps blow rating is perfect for intermittent circuit loads, offering a higher level of surge protection for your car or commercial vehicle and its components. Durite’s Blue standard spade fuse is medium-sized and the most popular in the Durite automotive blade fuse family.

Fuse Ratings

 The rating for 15A continuous use is based on a circuit load being always on (constant), and the 30A blow rating is based on an intermittent circuit load for surge protection.

 Continuous ratings for fuses are based on the fact they should blow at the specified amperage when the circuit is always on. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.

Specifications

Type Standard Automotive Blade Fuse
Voltage 12 to 24 Volts DC (32 Volts DC Maximum)
Current Rating 15 Amps - Continuous
Blow Rating (from cold) 30 Amps - Intermittent
Colour Blue
Weight 4g
