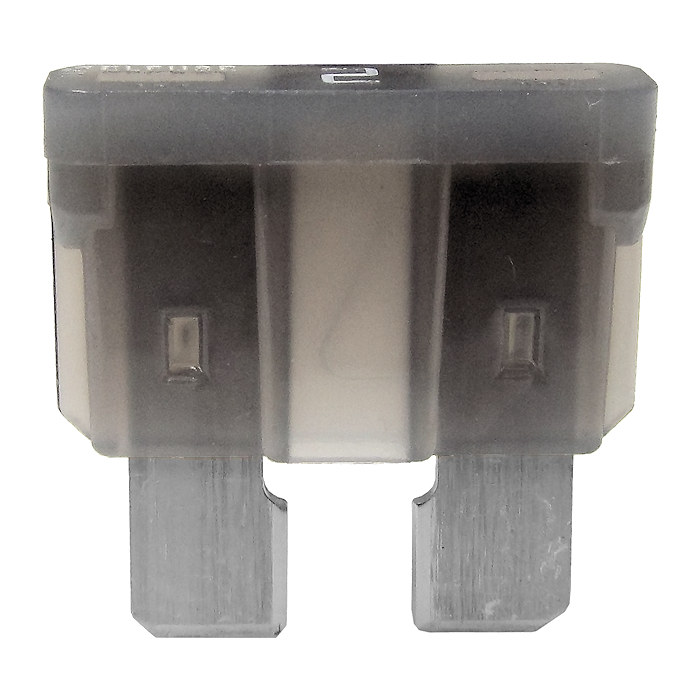

Durite 12V-24Vdc 2A Grey standard blade or spade fuse, used for automotive cable and wiring as surge protection.
- Grey colour coded for easy identification.
- Voltage: 12 and 24 Volts DC (32 Volts DC Maximum).
- 2 Amps continuous rating, 4 Amps blow rating.
- Pack Quantity: 10, 50 and 200 pieces.
Dimensions
- Width: 19.0mm.
- Length including blade: 19.0mm.
- Thickness: 5.0mm.
About The Standard Grey 2A Spade Fuse
Durite’s standard Grey blade fuse style is an essential and compact solution to any automotive wiring and component protection system. Rated for 2 Amps continuous use, this 12V-24Vdc fuse offers reliable protection from circuit overloads. It comes in packs of 10, 50 and 200 pieces and can be used in a vehicle's fusebox or with inline holders for circuit overload protection. The 4 Amps blow rating is perfect for intermittent circuit loads, offering a higher level of surge protection for your car or commercial vehicle and its components. Durite’s Grey standard spade fuse is medium-sized and the most popular in the Durite automotive blade fuse family.
Fuse Ratings
The rating for 2A continuous use is based on a circuit load being always on (constant), and the 4A blow rating is based on an intermittent circuit load for surge protection.
Continuous ratings for fuses are based on the fact they should blow at the specified amperage when the circuit is always on. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.
Specifications
Type | Standard Automotive Blade Fuse |
Voltage | 12 to 24 Volts DC (32 Volts DC Maximum) |
Current Rating | 2 Amps - Continuous |
Blow Rating (from cold) | 4 Amps - Intermittent |
Colour | Grey |
Weight | 4g |
