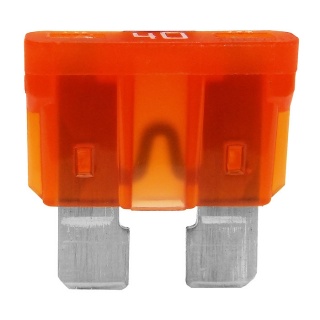

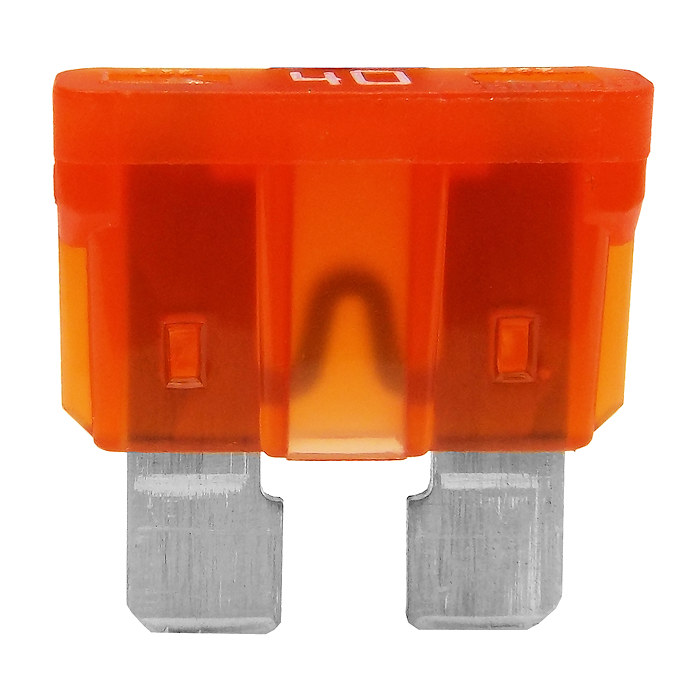

Durite 40A Orange Standard Automotive Blade Fuse | Re: 0-375-40

£2.03  Excl. VAT
  (£2.44 Inc. VAT)
RRP:  £2.28  Excl. VAT
Initial Savings:  £0.25
Earn 2 Loyalty Points
Available


Weight:  20 g





Model:  0-375-40
Bar Code:  5056119110234
Part Number:  0-375-40
Brand:  Durite
Colour:  Orange
Voltage:  12V/24V DC
Amperage:  40A
Material:  Brass/Plastic


 Durite 12V-24Vdc 40A Orange standard blade or spade fuse, used for automotive cable and wiring as surge protection.

  • Orange colour coded for easy identification.
  • Voltage: 12 and 24 Volts DC (32 Volts DC Maximum).
  • 40 Amps continuous rating, 80 Amps blow rating.
  • Pack Quantity: 10, 50 and 200 pieces.

Dimensions

  • Width: 19.0mm.
  • Length including blade: 19.0mm.
  • Thickness: 5.0mm.

About The Standard Orange 40A Spade Fuse

 Durite’s standard Orange coloured blade fuse style is an essential and compact solution to any automotive wiring and component protection system. Rated for 40 Amps continuous use, this 12V-24Vdc fuse offers reliable protection from circuit overloads. It comes in packs of 10, 50 and 200 pieces and can be used in a vehicle's fusebox or with inline holders for circuit overload protection. The 80 Amps blow rating is perfect for intermittent circuit loads, offering a higher level of surge protection for your car or commercial vehicle and its components. Durite’s Orange standard spade fuse is medium-sized and the most popular in the Durite automotive blade fuse family.

Fuse Ratings

 The rating for 40A continuous use is based on a circuit load being always on (constant), and the 80A blow rating is based on an intermittent circuit load for surge protection.

 Continuous ratings for fuses are based on the fact they should blow at the specified amperage when the circuit is always on. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.

Specifications

Type Standard Automotive Blade Fuse
Voltage 12 to 24 Volts DC (32 Volts DC Maximum)
Current Rating 40 Amps - Continuous
Blow Rating (from cold) 80 Amps - Intermittent
Colour Orange
Weight 4g
