10-way Standard Blade Fuse Box with LED Indicators | Re: 0-234-60

£26.27  Excl. VAT
  (£31.52 Inc. VAT)
RRP:  £29.52  Excl. VAT
Initial Savings:  £3.25
Earn 26 Loyalty Points
Available


Weight:  130 g





Model:  0-234-60
Bar Code:  5056119106770
Part Number:  0-234-60
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  150A
Material:  Plastic/Brass/Steel

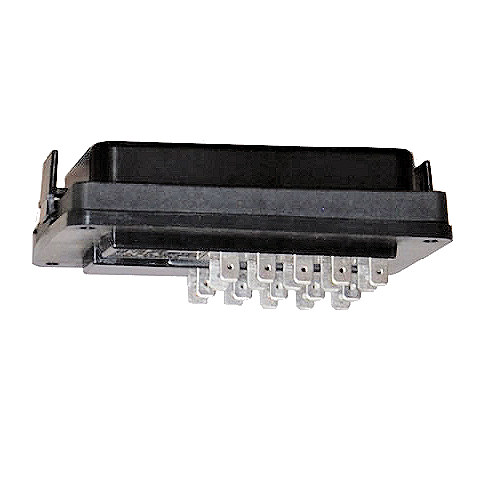

 Durite 10-way splashproof fusebox for standard blade or spade fuses with LED blown fuse indicators.

  • Holder for the standard range of ATC automotive blade fuses.
  • Ten fuse positions with LED indicators for blown fuse position.
  • 6.3mm base blade terminal output.
  • Maximum fuse size in each position: 25A.
  • Maximum total load: 150A.
  • Can accommodate 6 spare fuses.
  • M5 fixing holes.

Dimensions

  • Height (not including base terminals): 30mm.
  • Width: 90mm.
  • Length: 125mm.

About The 10-way Standard Spade Fuse Box

 Durite's ten-way unit is a vehicle recess or through panel mounted fuse holder, and can accommodate 10 standard automotive blade or spade fuses (Part number 0-375-50 style), each with an LED status indicator, the fuse carrier comes with an easy inspection PVC splashproof cover and mounting rubber gasket.

Specifications

Type Recess mounted fuse box
Voltage 12 and 24 Volts DC (rated to 32Vdc)
Amps 150A Maximum
Terminal wire size 10-16AWG
Fuse specifications ATC blade fuses only.
Mounting torque rating 8lb (0.9Nm) maximum.
Operation Temperature (centigrade) -25 to +85℃
IP Rating IPX5
Colour Black
Material Cover: Polycarbonate. Housing-Base: PBT Black. Terminals: Copper.
