0-234-00 4-way Continental Fuse Box

£9.91  Excl. VAT
  (£11.89 Inc. VAT)
RRP:  £11.14  Excl. VAT
Initial Savings:  £1.23
Earn 9 Loyalty Points
Available


Weight:  70 g


Model:  0-234-00
Bar Code:  5056119106640
Part Number:  0-234-00
Brand:  Durite
Colour  Black/Clear
Voltage  12V/24V DC
Material  Plastic/Brass/Steel

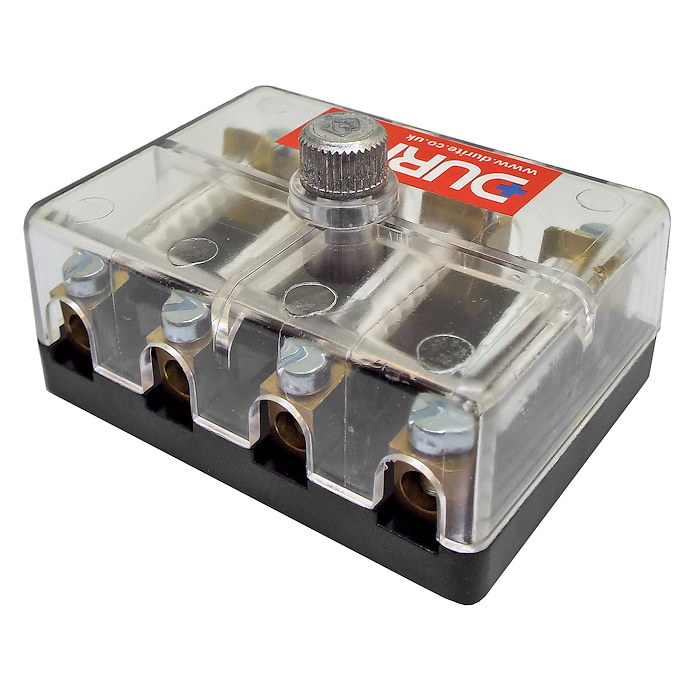

 Durite 4-way Continental type automotive fusebox.

  • Four-way or four-position fuse holder to accommodate Continental festoon type fuses.
  • With screw terminals.
  • Screw-on transparent cover.
  • Panel or bulkhead mounted.
  • Supplied with 8A fuses.
  • Pack quantity: 1 piece.

Dimensions

  • Length: 60mm (approximately).
  • Width: 45mm.
  • Height: 25mm.
  • Height including cover screw: 34mm.

About The 4-way Continental Fuse Holder

  Four-way surface or panel mounted fuse holder for bullet or torpedo style continental fuses, with a screwed down clear cover for easy access. Used on 12V and 24Vdc electrical systems, the fuse carrier has a festoon style locking action for the fuses and a screw-type termination for the electric cable.

 The holder accepts stock continental fuses: 5A yellow, 6A white, 16A red and 25A blue.

Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.
