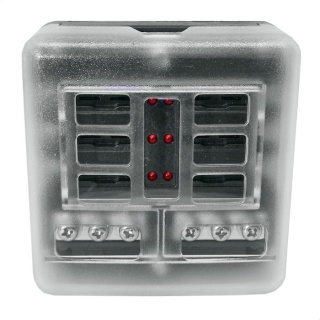

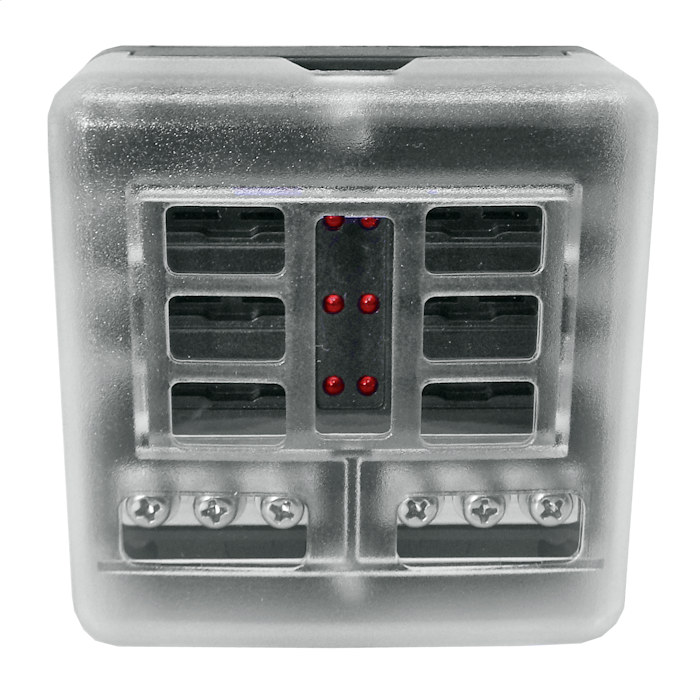

0-234-76 Durite 6-way LED Fuse Box And Bus Bar - 32V Max.

£24.33  Excl. VAT
  (£29.20 Inc. VAT)
RRP:  £27.34  Excl. VAT
Initial Savings:  £3.01
Earn 24 Loyalty Points
Available


Weight:  170 g





Model:  0-234-76
Bar Code:  5056119154054
Part Number:  0-234-76
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  100A
Material:  Plastic/Brass/Steel


 Durite 6-way fuse box with busbar for input, M5 stud and LED blown fuse indicators.

  • For standard automotive blade or spade fuses.
  • Rated to 32Vdc, 100A
  • Wire input 16mm² to 25mm² (4-6AWG), output 1.5mm² to 4.00mm² (#12-16AWG).
  • Output terminal 30A maximum per circuit.

Dimensions

  • Length: 88mm
  • Width: 86mm
  • Height: 36mm

About The 6-way Automotive Fusebox

 Durite's modern style standard fuse carrier comes with an easy inspection PVC cover and positions labels. The blade fuse holder is designed to pick up the common input, fuse protect components via the screw terminal connection and has LED indicators to show a blown fuse position.
