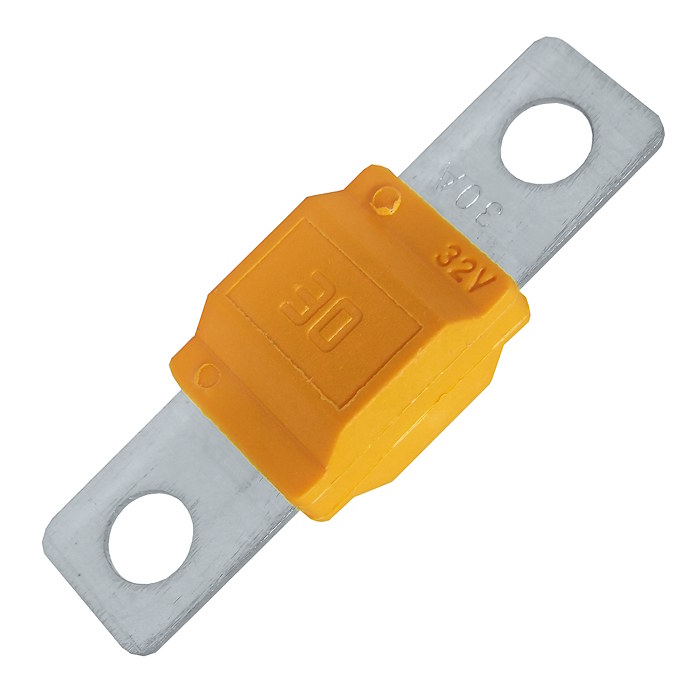

0-368-13 Durite Aftermarket Orange MIDI Type Fuse - 30A

£1.34  Excl. VAT
  (£1.61 Inc. VAT)
RRP:  £1.54  Excl. VAT
Savings before Cart:  £0.20
Earn 1 Loyalty Points
Available


Weight:  10 g


Model:  0-368-13
Bar Code:  5056119147636
Part Number:  0-368-13
Brand:  Durite
Colour  Orange
Voltage  32V DC Max.
Amperage  30A
Material  Zinc Alloy/Thermoplastic


 Durite brand 30 Amps Orange MIDI type fuse, designed for medium-duty circuit protection when high loads and medium gauge automotive cables are used.

  • Colour coded: Orange.
  • 30A continuous use.
  • 60A blow rating.
  • Voltage rating: 32Vdc.
  • Zinc alloy terminal.
  • Thermoplastic housing.
  • Mounting torque M5: 4.5Nm plus or minus 1Nm.

Fits Fuse Holder Part Numbers

  • 0-378-00 Strip link fuse holder
  • 0-378-85 MIDI fuse holder

Dimensions

  • Length: 41mm.
  • Body width: 12mm.
  • Blade width: 10mm.
  • 5.50mm (M5 bolt) hole centers: 30mm.

About The 30 Amps MIDI Style Aftermarket Fuses

 The 30A Orange colour-coded bolt-down MIDI style fuse from the Durite aftermarket automotive fuse range is ideal for space-saving fuse solutions. They are designed for medium to heavier-duty batteries, alternators and auto-electric switchgear protection on vehicles and industrial equipment. The 30A continuous rating gives high current circuit protection on equipment circuits that are passing current (always on); the 60A blow rating is for intermittent circuits where the zinc alloy fuse element requires to heat up from cold before blowing.

 The MIDI style fuse range is ideal for medium to heavy-duty equipment circuits and medium to heavy-duty gauge electric cables.

Specifications

Type MIDI style fuse
Voltage To 32 Volts DC
Colour Code Orange
Current Rating 30 Amps - Continuous
Blow Rating (from cold) 60 Amps - Intermittent
Body Material Polybutylene Terephthalate (PBT)
Terminal Zinc
Operating Temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Mounting Torque M5 4.5 Nm +/- 1Nm
Weight 10g
