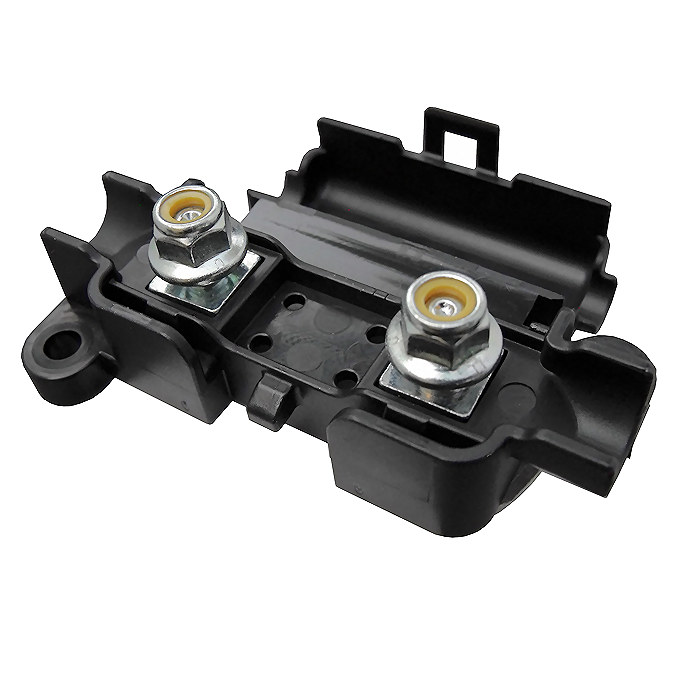

0-378-00 Strip Link Fuse Holder

£3.76  Excl. VAT
  (£4.51 Inc. VAT)
RRP:  £4.22  Excl. VAT
Initial Savings:  £0.46
Earn 3 Loyalty Points
Available


Weight:  20 g





Model:  0-378-00
Bar Code:  5056119110708
Part Number:  0-378-00
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  100A
Material:  Nylon PA66/Steel


 Durite automotive strip link and MIDI-type inline fuse holder.

  • Nylon and steel inline carrier for strip link fuses and the MIDI fuses range to 100A.
  • Post centres: 32mm.
  • M5 studs.
  • Suitable for most vehicle control panels and bulkhead mounting for surge protection.
  • It is supplied with a clip-fastening top cover for fuse protection.
  • Pack Quantity: 1 piece

Approximate Closed Box Dimensions

  • Length: 71mm
  • Height: 22mm
  • Width (including lugs): 38mm
  • Fixing holes M4, approximately 65mm hole centres (diagonal).

About The 0-378-00 Strip Link Fuse Holder

 The nylon (PA66) strip-link fusebox is also suitable for the MIDI range of link fuses up to 100 Amps. For example, this holder will accommodate the MIDI fuse. Still, the manufacturer only historically rates it for up to 100 Amps (continuous use), the original load limit covered by the small bare strip link fuse range.
