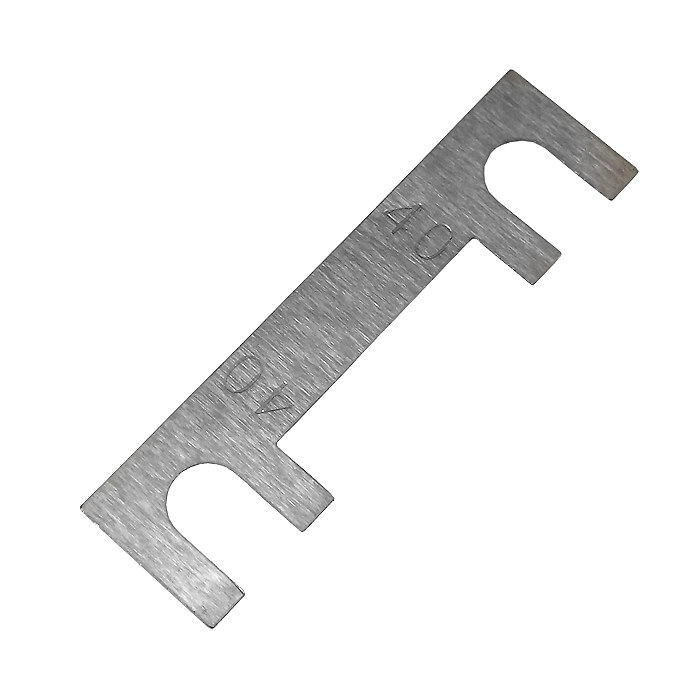

0-378-40 Pack of 10 Strip Link Fuses 40A

£1.90  Excl. VAT
  (£2.28 Inc. VAT)
RRP:  £2.18  Excl. VAT
Savings before Cart:  £0.28
Earn 1 Loyalty Points
Available


Weight:  10 g


Model:  0-378-40
Bar Code:  5056119110838
Part Number:  0-378-40
Brand:  Durite
Colour  Tin
Voltage  32V DC Max.
Amperage  40A
Material  Copper/Tin


 Durite 40 Amps strip link fuses for surge protection on vehicle components and automotive cables and wiring.

  • Classic hook ended style strip link fuse.
  • Continuous Rating: 40A.
  • Blow Rating: 80A.
  • Voltage: 32 Volts DC Maximum.
  • Manufactured to: DIN 72581-2.
  • Always check your equipment's manual before replacing fuses to determine which fuses you require.
  • Pack Quantity: 10 pieces.

Associated products

  • 0-378-00 Strip Link Fuse Holder
  • 0-378-85 MIDI Fuse Holder

Approximate Dimensions

  • Total Length: 41.0mm
  • Total Width: 11.0mm
  • For M5 post centre: 32mm.

About The 40A Strip Link Fuse

 The Durite classic style small strip link fuses are historically used for surge protection, usually found mounted on vehicle fuse panels and when used inline on automotive cables and vehicle wiring.

 The ratings for 40A continuous use is based on a circuit constant load being always-on, the 80A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
