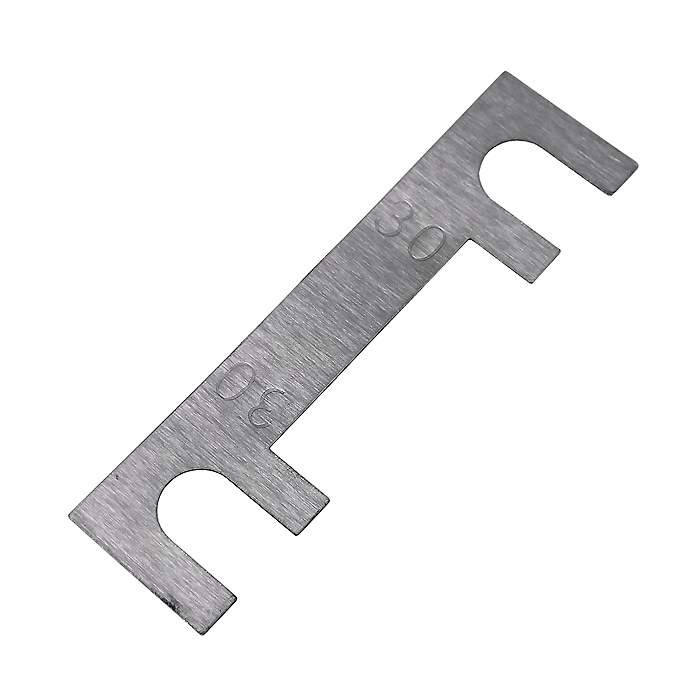

0-378-30 Pack of 10 Strip Link Fuses 30A

£2.03  Excl. VAT
  (£2.44 Inc. VAT)
RRP:  £2.28  Excl. VAT
Initial Savings:  £0.25
Earn 2 Loyalty Points
Available


Weight:  10 g





Model:  0-378-30
Bar Code:  5056119110814
Part Number:  0-378-30
Brand:  Durite
Colour:  Tin
Voltage:  12V/24V DC
Amperage:  30A
Material:  Copper/Tin


 Durite 30 Amps strip link fuses for surge protection on vehicle components and automotive cables and wiring.

  • Classic hook ended style strip link fuse.
  • Continuous Rating: 30A.
  • Blow Rating: 60A.
  • Voltage: 32 Volts DC Maximum.
  • Manufactured to: DIN 72581-2.
  • Always check your equipment's manual before replacing fuses to determine which fuses you require.
  • Pack Quantity: 10 pieces.

Associated products

  • 0-378-00 Strip Link Fuse Holder
  • 0-378-85 MIDI Fuse Holder

Approximate Dimensions

  • Total Length: 41.0mm
  • Total Width: 11.0mm
  • For M5 post centre: 32mm.

About The 30A Strip Link Fuse

 The Durite classic style small strip link fuses are historically used for surge protection, usually found mounted on vehicle fuse panels and when used inline on automotive cables and vehicle wiring.

 The ratings for 30A continuous use is based on a circuit constant load being always-on, the 60A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
