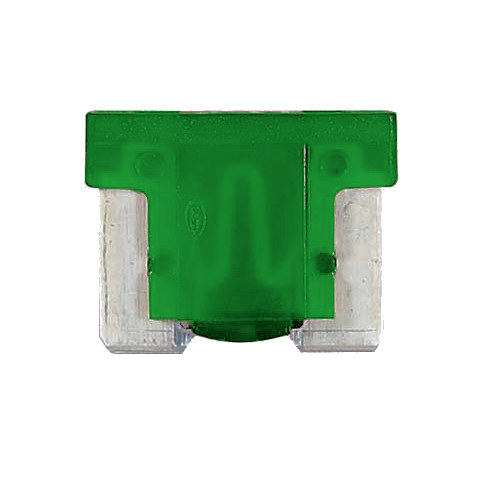

0-371-30 Pack of 10 Durite 30A Low Profile MINI Blade Fuse Green
Weight: 20 g
Model: 0-371-30
Bar Code: 5056119109573
Part Number: 0-371-30
Brand: Durite
Colour: Green
Voltage: 32V DC Max.
Amperage: 30A
Material: Zinc Alloy/Thermoplastic
The Durite 30A green coloured low profile MINI® fuse has similar performance characteristics as the standard MINI® fuse. The lower overall height allows for more space and weight savings.
- Green colour coded for easy identification.
- Continuous rating: 30A, blow rating: 60A.
- Pack quantity: 10 pieces.
Dimensions
- Height: 8.73mm.
- Width: 10.90mm.
- Thickness at the widest point: 3.81mm.
About the Green 30A Low Profile MINI® Spade Fuse
The smaller and compact type of fuse from the Durite automotive blade fuse family, the tan coloured MINI® blade low profile fuse offers a 30A continuous load protection and has a space-saving characteristic in the form of the retracted type brass blades.
The ratings for 30A continuous use is based on a circuit constant load being always-on, the 60A blow rating is based on the circuit load being intermittent.
Fuse Ratings
Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
