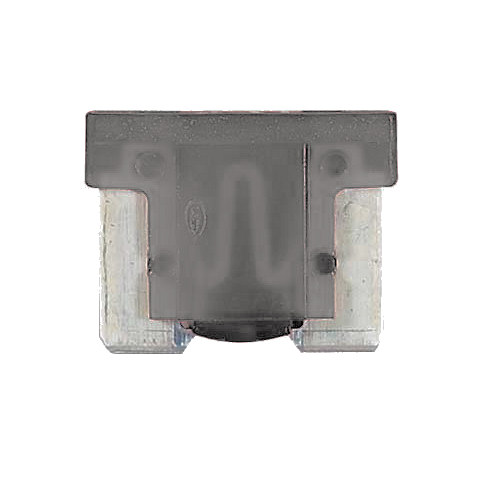

0-371-02 Pack of 10 Durite 2A Low Profile MINI Blade Fuse Grey

£8.46  Excl. VAT
  (£10.15 Inc. VAT)
RRP:  £9.50  Excl. VAT
Initial Savings:  £1.04
Earn 8 Loyalty Points
Available


Weight:  20 g


Model:  0-371-02
Bar Code:  5056119109504
Part Number:  0-371-02
Brand:  Durite
Colour  Grey
Voltage  12V/24V DC
Amperage  2A
Material  Zinc Alloy/Thermoplastic


 The Durite 2A grey coloured low profile MINI fuse has similar performance characteristics as the standard MINI fuse. The lower overall height allows for more space and weight savings.

  • Grey colour coded for easy identification.
  • Continuous rating: 2A, blow rating: 4A.
  • Pack quantity: 10 pieces.

Dimensions

  • Height: 8.73mm.
  • Width: 10.90mm.
  • Thickness at the widest point: 3.81mm.

About The Grey 2A Low Profile MINI Spade Fuse

 The smaller and compact type of fuse from the Durite automotive blade fuse family, the grey coloured MINI blade low profile fuse offers a 2A continuous load protection and has a space-saving characteristic in the form of the retracted type brass blades.

 The ratings for 2A continuous use is based on a circuit constant load being always-on, the 4A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
