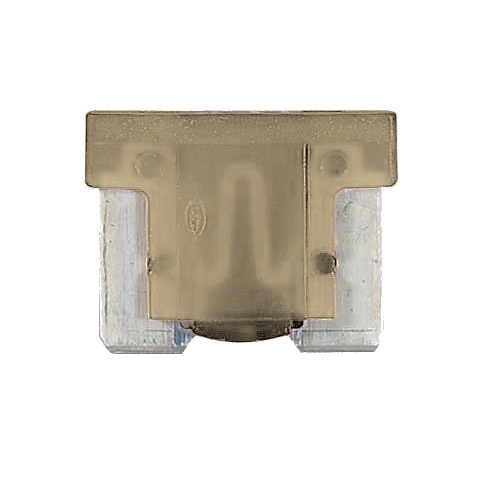

0-371-25 Pack of 10 Durite 25A Low Profile MINI Blade Fuse Neutral

£7.56  Excl. VAT
  (£9.07 Inc. VAT)
RRP:  £8.69
Savings before Cart:  £1.13
Earn 7 Loyalty Points
Available


Weight:  20 g


Model:  0-371-25
Bar Code:  5056119109566
Part Number:  0-371-25
Brand:  Durite
Colour:  Neutral
Voltage:  32V DC Max.
Amperage:  25A
Material:  Zinc Alloy/Thermoplastic


 The Durite 25A neutral coloured low profile MINI® fuse has similar performance characteristics as the standard MINI® fuse. The lower overall height allows for more space and weight savings.

  • Neutral colour coded for easy identification.
  • Continuous rating: 25A, blow rating: 50A.
  • Pack quantity: 10 pieces.

Dimensions

  • Height: 8.73mm.
  • Width: 10.90mm.
  • Thickness at the widest point: 3.81mm.

About the Neutral 25A Low Profile MINI® Spade Fuse

 The smaller and compact type of fuse from the Durite automotive blade fuse family, the neutral coloured MINI® blade low profile fuse offers a 25A continuous load protection and has a space-saving characteristic in the form of the retracted type brass blades.

 The ratings for 25A continuous use is based on a circuit constant load being always-on, the 50A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.

Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.

0-371-02 Pack of 10 Durite 2A Low Profile MINI Blade Fuse Grey
0-371-02 Pack of 10 Durite 2A Low Profile MINI Blade Fuse Grey

Durite Grey coloured low profile 2A MINI® blade fuse. 10.90mm wide 2 Amps vehicle fuses with low profile brass blades.

Available
 Reference: 0-371-02 £8.69   £7.56

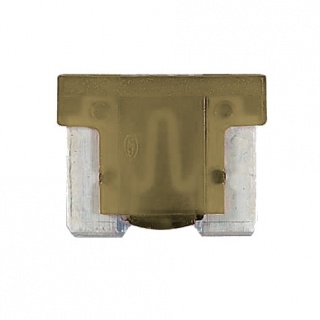

0-371-05 Pack of 10 Durite 5A Low Profile MINI Blade Fuse Tan
0-371-05 Pack of 10 Durite 5A Low Profile MINI Blade Fuse Tan

Durite tan coloured low profile 5A MINI® blade fuse. 10.90mm wide 5 Amps vehicle fuses with low profile brass blades.

Available
 Reference: 0-371-05 £8.69   £7.56

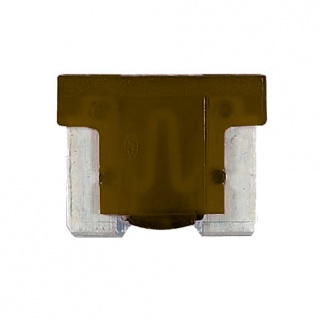

0-371-07 Pack of 10 Durite 7.5A Low Profile MINI Blade Fuse Brown
