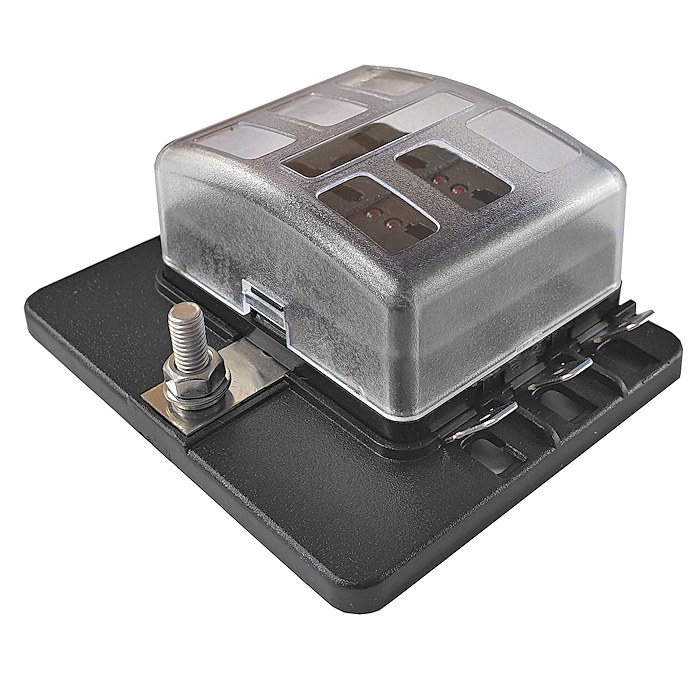

0-234-56 Durite 6-way LED Fuse Box And Bus Bar - 32V Max.

£14.72  Excl. VAT
  (£17.66 Inc. VAT)
RRP:  £16.54  Excl. VAT
Initial Savings:  £1.82
Earn 14 Loyalty Points
Available


Weight:  170 g





Model:  0-234-56
Bar Code:  5056119154047
Part Number:  0-234-56
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  100A
Material:  Plastic/Brass/Steel


 Durite standard blade or spade fuse six-way fusebox with a common busbar input and LED fuse blown indicators.

  • For standard automotive spade or blade fuses.
  • LED indicators for showing a blown fuse position.
  • Voltage: 12V-24Vdc (32Vdc maximum).
  • Rated: 100A
  • Wire input 16mm² to 25mm² (4-6AWG), output 1.5mm² to 4.00mm² (#12-16AWG).
  • Output terminal 30A maximum per circuit.

Approximate Dimensions

  • Length: 70mm
  • Width: 85mm
  • Height: 36mm

About The 6-way Automotive Fusebox

 Durite's modern style six-way standard fuse carrier comes with an easy inspection PVC cover and position labels. The blade fuse holder is designed to pick up the common input, fuse protect components via the 6.3mm spade connection and has LED indicators to show a blown fuse position.
