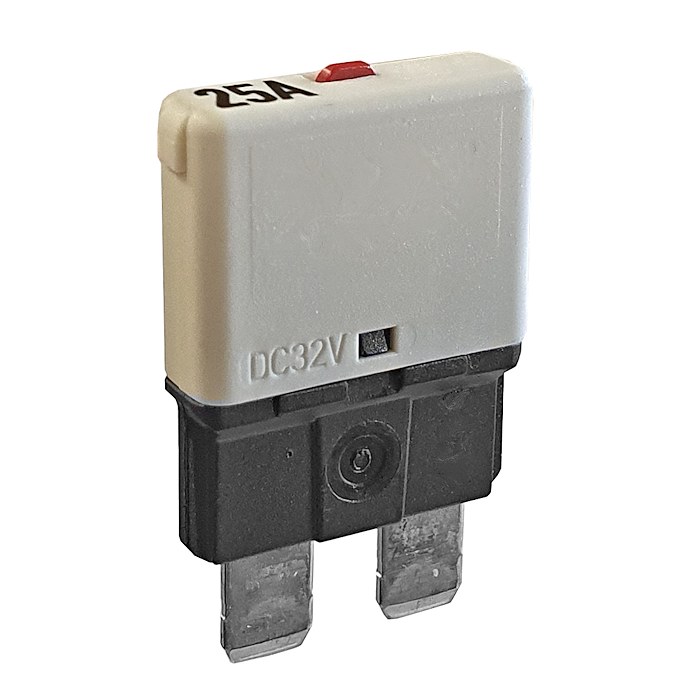

0-380-25 Blade Fuse Replacement Circuit Breaker Pearl 25A

£17.72  Excl. VAT
  (£21.26 Inc. VAT)
RRP:  £20.37  Excl. VAT
Savings before Cart:  £2.65
Earn 17 Loyalty Points
Available


Weight:  30 g


Model:  0-380-25
Bar Code:  5056119111408
Part Number:  0-380-25
Brand:  Durite
Colour  Pearl
Voltage  32V DC Max.
Amperage  25A
Material  Thermoplastic/Brass/Copper


 Durite pearl coloured 25 Amps blade fuse replacement circuit breaker. Manual reset surge protection for automotive vehicles.

  • Colour: Pearl.
  • Current Rating: 25A for 12-24Vdc systems.
  • Voltage Rating: 32Vdc Maximum.
  • Thermal bimetallic with manual reset.
  • Will replace standard blade fuses in many fuse holders and boxes.
  • Pack Quantity: 1 Piece.

Dimensions

  • Length: 20mm
  • Width: 6mm
  • Height: 38mm (inc blades and trip extended)

Specifications

Type Manual Reset Circuit Breaker
Voltage 12-24 Volts DC (maximum 32 Volts DC)
Voltage drop Less than 150mV
Current ratings 25A
Colour code Pearl
Vibration 10g (57-500 Hz)
Degree of protection Operating area IP30, terminal area IP00
Operating temperature Minus 40℃ to +85℃
Humidity 95% RH
Nett Weight 5g
