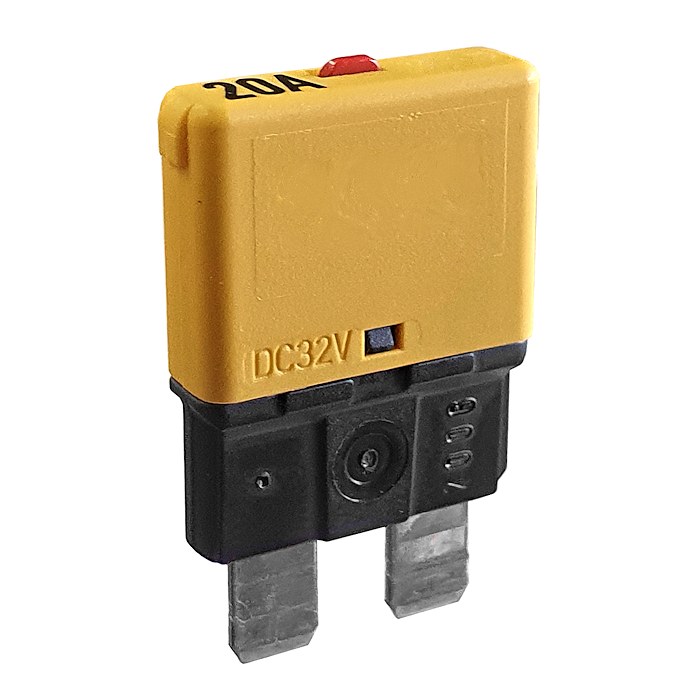

0-380-20 Blade Fuse Replacement Circuit Breaker Yellow 20A

£19.26  Excl. VAT
  (£23.11 Inc. VAT)
RRP:  £21.64  Excl. VAT
Initial Savings:  £2.38
Earn 19 Loyalty Points
Available


Weight:  30 g





Model:  0-380-20
Bar Code:  5056119111392
Part Number:  0-380-20
Brand:  Durite
Colour:  Yellow
Voltage:  12V/24V DC
Amperage:  20A
Material:  Thermoplastic/Brass/Copper


 Durite yellow coloured 20 Amps blade fuse replacement circuit breaker. Manual reset surge protection for automotive vehicles.

  • Colour: Yellow.
  • Current Rating: 20A for 12-24Vdc systems.
  • Voltage Rating: 32Vdc Maximum.
  • Thermal bimetallic with manual reset.
  • Will replace standard blade fuses in many fuse holders and boxes.
  • Pack Quantity: 1 Piece.

Dimensions

  • Length: 20mm
  • Width: 6mm
  • Height: 38mm (inc blades and trip extended)

Specifications

Type Manual Reset Circuit Breaker
Voltage 12-24 Volts DC (maximum 32 Volts DC)
Voltage drop Less than 150mV
Current ratings 20A
Colour code Yellow
Vibration 10g (57-500 Hz)
Degree of protection Operating area IP30, terminal area IP00
Operating temperature Minus 40℃ to +85℃
Humidity 95% RH
Nett Weight 5g
