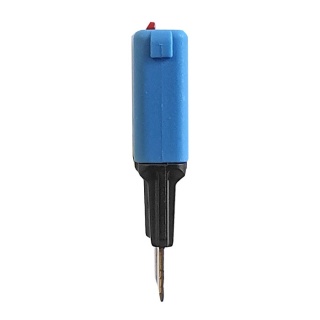

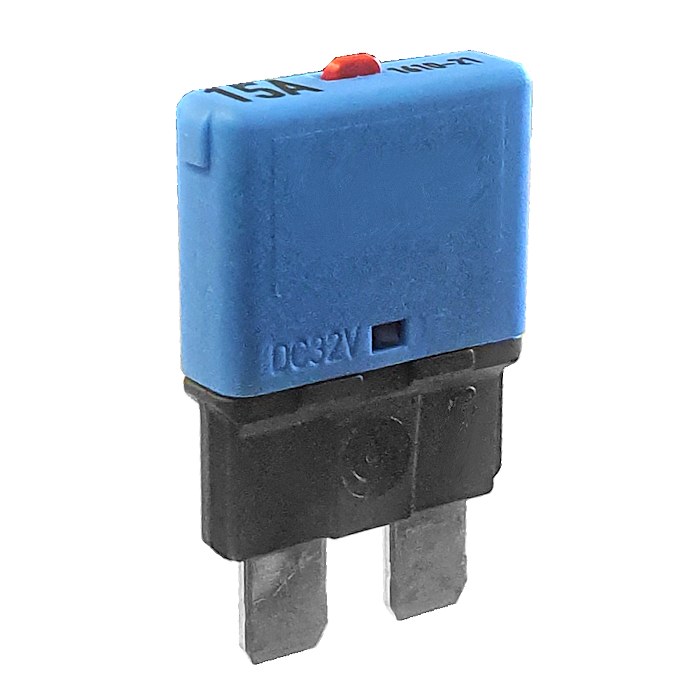

0-380-15 Blade Fuse Replacement Circuit Breaker Blue 15A

£19.05  Excl. VAT
  (£22.86 Inc. VAT)
RRP:  £21.40  Excl. VAT
Initial Savings:  £2.35
Earn 19 Loyalty Points
Available


Weight:  30 g


Model:  0-380-15
Bar Code:  5056119111385
Part Number:  0-380-15
Brand:  Durite
Colour  Blue
Voltage  12V/24V DC
Amperage  15A
Material  Thermoplastic/Brass/Copper


 Durite blue coloured 15 Amps blade fuse replacement circuit breaker. Manual reset surge protection for automotive vehicles.

  • Colour: Blue.
  • Current Rating: 15A for 12-24Vdc systems.
  • Voltage Rating: 32Vdc Maximum.
  • Thermal bimetallic with manual reset.
  • Will replace standard blade fuses in many fuse holders and boxes.
  • Pack Quantity: 1 Piece.

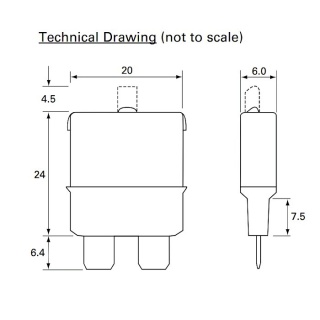

Dimensions

  • Length: 20mm
  • Width: 6mm
  • Height: 38mm (inc blades and trip extended)

Specifications

Type Manual Reset Circuit Breaker
Voltage 12-24 Volts DC (maximum 32 Volts DC)
Voltage drop Less than 150mV
Current ratings 15A
Colour code Blue
Vibration 10g (57-500 Hz)
Degree of protection Operating area IP30, terminal area IP00
Operating temperature Minus 40℃ to +85℃
Humidity 95% RH
Nett Weight 5g
Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

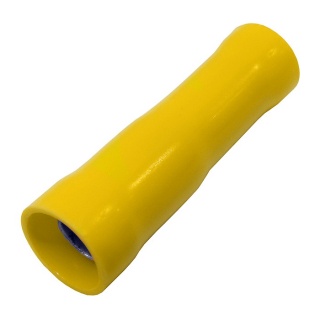

Durite Yellow 5.00mm Receptacle Crimp Terminals | Re: 0-001-38
Durite Yellow 5.00mm Receptacle Crimp Terminals | Re: 0-001-38

Durite Yellow pre-insulated automotive 5mm bullet receptacle terminals. For cables 0.05mm² to 1.5mm². Heat Shrink versions are available.

Available
 Reference: 0-001-38 From:  £5.29
0-002-52 Pack of 100 Durite Black Cable Ties 100 x 2.5mm
0-002-52 Pack of 100 Durite Black Cable Ties 100 x 2.5mm

Pack of approximately 100 Black cable ties size: 100mm long by 2.5mm wide.

Available
 Reference: 0-002-52 £1.06   £0.94
0-332-14 25 Metre Coil 14.0mm ID Black Electrical Harness Sleeving
0-332-14 25 Metre Coil 14.0mm ID Black Electrical Harness Sleeving

Durite Black PVC electrical cable harness sleeving, wall thickness: 0.5mm.

Available
 Reference: 0-332-14 £32.26   £28.71


Related Products

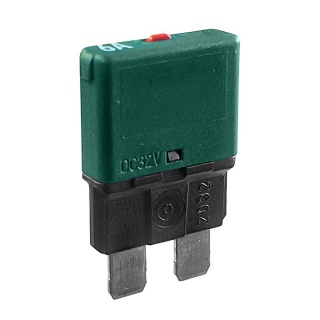

0-380-06 Blade Fuse Replacement Circuit Breaker Green 6A
0-380-06 Blade Fuse Replacement Circuit Breaker Green 6A

Durite Green 6 Amps circuit breaker for 12-24Vdc systems. The unit will replace standard blade fuses in many fuse holders and boxes.

Available
 Reference: 0-380-06 £21.40   £19.05

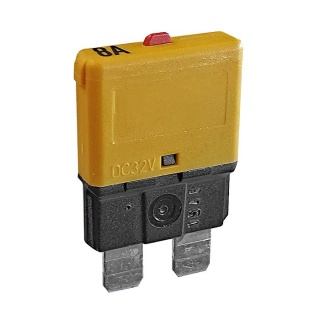

0-380-08 Blade Fuse Replacement Circuit Breaker Tan 8A
0-380-08 Blade Fuse Replacement Circuit Breaker Tan 8A

Durite Tan 8 Amps circuit breaker for 12-24Vdc systems. The unit will replace standard blade fuses in many fuse holders and boxes.

Available
 Reference: 0-380-08 £21.40   £19.05

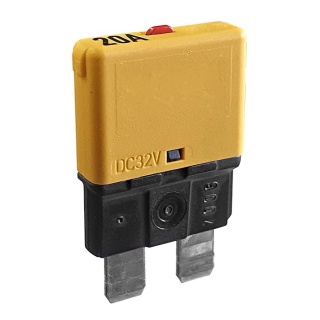

0-380-20 Blade Fuse Replacement Circuit Breaker Yellow 20A
0-380-20 Blade Fuse Replacement Circuit Breaker Yellow 20A

Durite Yellow 20 Amps circuit breaker for 12-24Vdc systems. The unit will replace standard blade fuses in many fuse holders and boxes.

Available
 Reference: 0-380-20 £21.64   £19.26

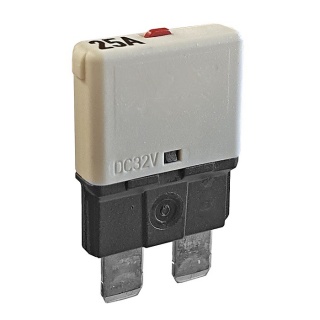

0-380-25 Blade Fuse Replacement Circuit Breaker Pearl 25A
0-380-25 Blade Fuse Replacement Circuit Breaker Pearl 25A

Durite pearl 25 Amps circuit breaker for 12-24Vdc systems. The unit will replace standard blade fuses in many fuse holders and boxes.

Available
 Reference: 0-380-25 £21.40   £19.05

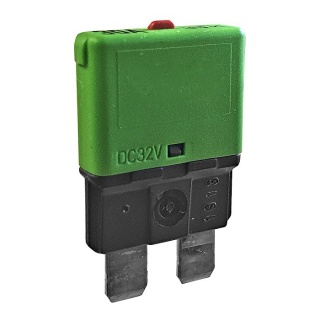

0-380-30 Blade Fuse Replacement Circuit Breaker Green 30A
