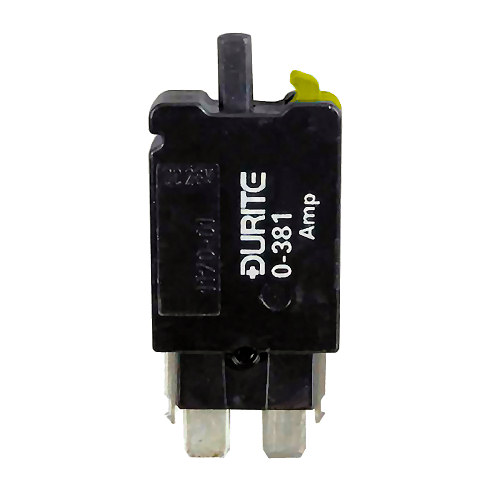

0-381-20 Durite Blade Fuse Replacement Circuit Breaker 20A

£27.32  Excl. VAT
  (£32.78 Inc. VAT)
RRP:  £30.70  Excl. VAT
Initial Savings:  £3.38
Earn 27 Loyalty Points
Available


Weight:  30 g





Model:  0-381-20
Bar Code:  5056119111491
Part Number:  0-381-20
Brand:  Durite
Colour:  Black/Yellow
Voltage:  12V/24V DC
Amperage:  20A
Material:  Thermoplastic/Brass/Copper


 Durite 20 Amps blade fuse replacement circuit breaker. Manual reset surge protection for automotive vehicles.

  • Colour: Yellow Button.
  • Current Rating:20A for 12-24Vdc systems.
  • Voltage Rating: 28Vdc Maximum.
  • Thermal bimetallic with manual reset and manual trip.
  • Will replace standard blade fuses in many fuse holders and boxes.
  • Pack Quantity: 1 Piece.

Dimensions

  • Length: 18.8mm
  • Width: 9.8mm
  • Height: 51.4mm (including blades and trip extended)

About The 20A Yellow Manual Reset And Manual Trip Circuit Breaker

 The Durite compact single pole thermal circuit breaker with push-to-reset, tease-free, trip-free, snap action mechanism and separate (yellow colour coded) manual release. The Unit combines a full-feature circuit breaker protection and convenience along with a low cost of ownership benefits. They are fitted with standard fuse-sized blade terminals for plug-in mounting.

Specifications

Type Manual Trip & Reset Circuit Breaker
Voltage 12-24 Volts DC (maximum 28 Volts DC)
Number of poles Single pole
Current ratings 20A
Colour code Yellow button
Vibration 10g (57-500 Hz)
Degree of protection Operating area IP40, terminal area IP00
Ambient temperature Minus 40℃ to +60℃
Humidity 95% RH
Nett Weight 13g
