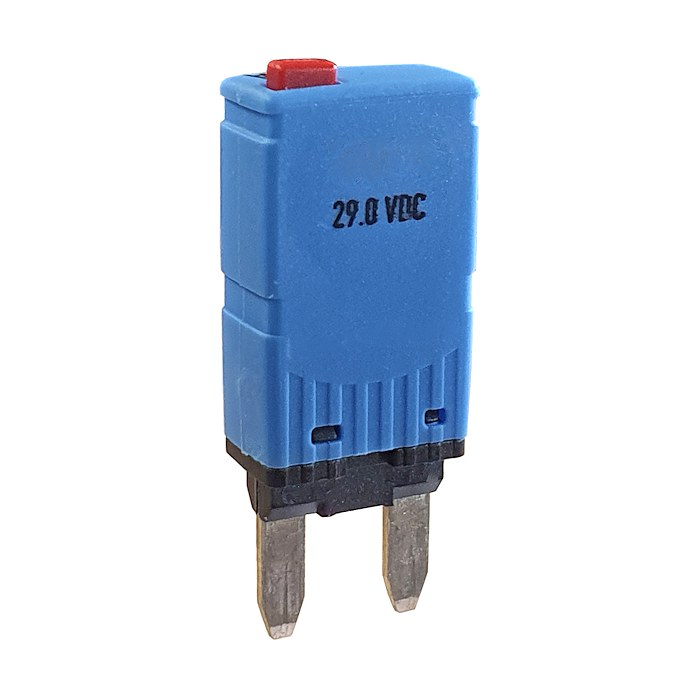

0-380-65 15A Blue Mini Blade Fuse Replacement Circuit Breaker

0-380-65 15A Blue Mini Blade Fuse Replacement Circuit Breaker
0-380-65 15A Blue Mini Blade Fuse Replacement Circuit Breaker
0-380-65 15A Blue Mini Blade Fuse Replacement Circuit Breaker
£15.47 Excl. VAT
RRP £18.12 Excl. VAT
(£18.56 Inc. VAT)
Initial Savings
£2.65
Earn 15 Loyalty Points

Available
Model
0-380-65
Bar Code
5056119111446
Part Number
0-380-65
Brand
Durite
Colour
Blue
Voltage
29V DC Max.
Amperage
15A
Material
Brass/Steel/Thermoplastic
 Intrastat HS Code  8536201090
Ship Weight
5 g


 Durite blue coloured 15 Amps MINI blade fuse replacement circuit breaker with manual reset surge protection for automotive vehicles.

  • Colour: Blue.
  • Current Rating: 15A for 12-24Vdc systems.
  • Voltage Rating: 32Vdc Maximum.
  • Thermal bimetallic with manual reset.
  • Will replace MINI blade fuses in many fuse holders and boxes.
  • Pack Quantity: 1 Piece.

Dimensions

  • Length: 13.3mm
  • Width: 7.0mm
  • Height: 36.0mm (inc blades and trip extended)

About the 0-380-65 Blue 15 Amps Mini Blade Circuit Breaker

 The 15A Blue coloured thermal circuit breakers from Arc Components Ltd are ideally suited to overload protection of motors, transformers, magnetic valves, on-board electrical systems and low voltage lines. This single pole, thermal miniaturised circuit breaker is designed for automotive applications and fits into fuse blocks designed to ISO 8820-3, Type F. Always check the clearance for closure if a fusebox cover is used.

Specifications

Type Manual Reset Circuit Breaker
Voltage 12-24 Volts DC (maximum 32 Volts DC)
Voltage drop Less than 150mV
Current ratings 15A
Colour code Blue
Vibration 10g (57-500 Hz)
Degree of protection Operating area IP40, terminal area IP00
Operating temperature Minus 40℃ to +85℃
Humidity 95% RH
Nett Weight 3g
