0-950-03 30m x 10.00mm² Brown 70A Auto Single-core Cable

£85.30  Excl. VAT
  (£102.36 Inc. VAT)
RRP:  £95.84  Excl. VAT
Initial Savings:  £10.54
Earn 85 Loyalty Points
Available


Weight:  4.26 kg





Model:  0-950-03
Bar Code:  5056119133363
Part Number:  0-950-03
Brand:  Durite
Colour:  Brown
Voltage:  12V/24V DC
Amperage:  70A
Material:  Copper/PVC

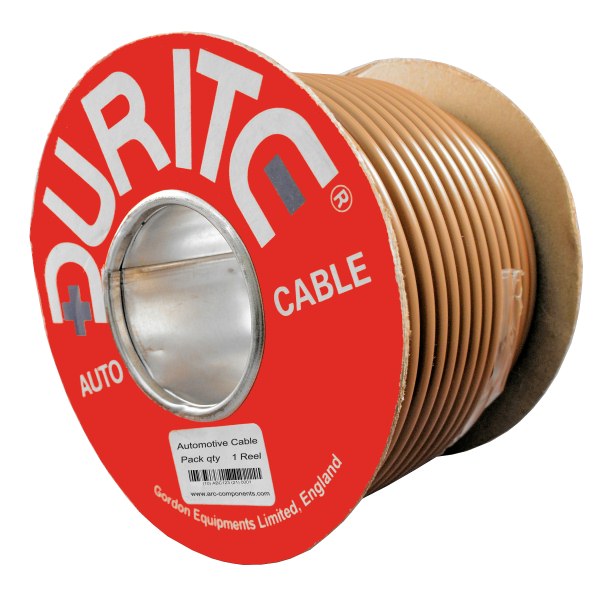

 Durite 70A Brown standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 10mm² (7AWG) Brown.
  • 70 Amps single-core automotive cable and vehicle wiring.
  • 80 copper strands at 0.40mm.
  • Outside diameter: 7.5mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 30m.

About the 0-950-03 10.00mm² Brown PVC Electric Cable

 Arc Components Limited presents the 0-950-03, Durite's heavy-duty 70A Brown automotive cable, ideal for your vehicle's connection to electrical equipment with a higher load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 10.0mm² (7 AWG) and features 80 strands of 0.40mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 7.5mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 70 Amps.

 The Durite 0-950-03 is commonly used as a conductor wire on high-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core standard automotive wiring
Current Rating 70.0 Amps
Insulation Colour Brown
Wire 80/0.40mm copper
Cross-section 10.00mm² (7 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 1.8mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   7.5mm
Temperature Minus 30 to +70℃
Length of Cable 30 Metres
Approvals BS 6862-1:1971
Weight 4.26Kg







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.
