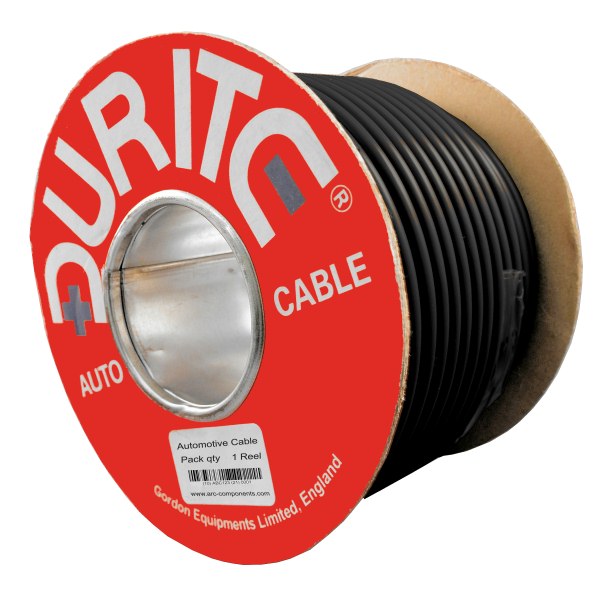

0-950-01 30m x 10.00mm² Black 70A Auto Single-core Cable

0-950-01 30m x 10.00mm² Black 70A Auto Single-core Cable
0-950-01 30m x 10.00mm² Black 70A Auto Single-core Cable
£85.09 Excl. VAT
RRP £99.68 Excl. VAT
(£102.11 Inc. VAT)
Initial Savings
£14.59
Earn 85 Loyalty Points

Available
Model
0-950-01
Bar Code
5056119133356
Part Number
0-950-01
Brand
Durite
Colour
Black
Voltage
12V/24V DC
Amperage
70A
Material
Copper/PVC
 Intrastat HS Code  8544499390
Ship Weight
4.26 kg


 Durite 70A Black standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 10mm² (7AWG) Black.
  • 70 Amps single-core automotive cable and vehicle wiring.
  • 80 copper strands at 0.40mm.
  • Outside diameter: 7.5mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 30m.

About the 0-950-01 10.00mm² Black PVC Electric Cable

 Arc Components Limited presents the 0-950-01, Durite's heavy-duty 70A Black automotive cable, ideal for your vehicle's connection to electrical equipment with a higher load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 10.0mm² (7 AWG) and features 80 strands of 0.40mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 7.5mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 70 Amps.

 The Durite 0-950-01 is commonly used as a Negative (-) conductor wire on high-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type
Single-core standard automotive wiring
Current Rating
70 Amps
Insulation Colour
Black
Wire
80/0.40mm copper
Cross-section
10mm² (7 AWG)
Voltage
For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance
1.8mΩ/m at 20 degrees C
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
7.5mm
Temperature
Minus 30 to +70 degrees C
Length of Cable
30 Metres
Approvals
BS 6862-1:1971
Weight
4.26Kg
