0-941-01 50m x 0.65mm˛ Black 5.75A Auto Single-core Electric Cable
Weight: 640 g
Bar Code: 5056119132359
Part Number: 0-941-01
Voltage 12V/24V DC
Durite 5.75A Black standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- .65mm² (19AWG) Black.
- 5.75 Amps single-core automotive cable and vehicle wiring.
- 9 copper strands at 0.30mm.
- Outside diameter: 2.5mm.
- Manufactured to BS6862-1:1971.
- Roll length: 50m.
About the 0-941-01 0.65mm² Black PVC Electric Cable
Arc Components Limited presents the 0-941-01, Durite's light-duty 5.75A Black automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 0.65mm² (19 AWG) and features 9 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.5mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 5.75 Amps.
The Durite 0-941-01 is commonly used as a Negative (-) conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
|Type ||Single-core standard automotive wiring |
|Current Rating ||5.75 Amps |
|Insulation Colour ||Black |

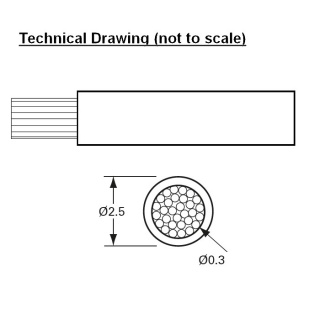

|Wire ||9/0.30mm copper |
|Cross-section ||0.65mm² (19 AWG) |
|Voltage ||For 12 and 24 Volts DC systems (100 Volts DC Max.) |
|Resistance ||29.4mΩ/m at 20℃ |
|Insulation ||Hard-grade PVC offers good resistance to abrasion and cut-through. |
|Overall Diameter ||2.5mm |
|Temperature ||Minus 30 to +70℃ |
|Length of Cable ||50 Metres |
|Approvals ||BS 6862-1:1971 |
|Weight ||0.64Kg |
