0-941-02 50m x 0.65mm² Blue 5.75A Auto Single-core Electric Cable

£10.88  Excl. VAT
  (£13.06 Inc. VAT)
RRP:  £12.22  Excl. VAT
Initial Savings:  £1.34
Earn 10 Loyalty Points
Available


Weight:  640 g





Model:  0-941-02
Bar Code:  5056119132366
Part Number:  0-941-02
Brand:  Durite
Colour  Blue
Voltage  12V/24V DC
Amperage  5.75A
Material  Copper/PVC


 Durite 5.75A Blue standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • .65mm² (19AWG) Blue.
  • 5.75 Amps single-core automotive cable and vehicle wiring.
  • 9 copper strands at 0.30mm.

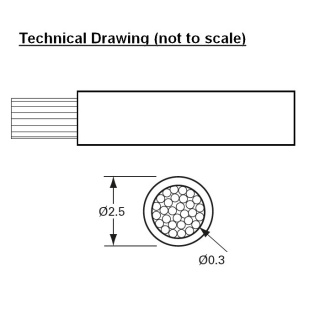

  • Outside diameter: 2.5mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 50m.

About the 0-941-02 0.65mm² Blue PVC Electric Cable

 Arc Components Limited presents the 0-941-02, Durite's light-duty 5.75A Blue automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 0.65mm² (19 AWG) and features 9 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.5mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 5.75 Amps.

 The Durite 0-941-02 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core standard automotive wiring
Current Rating 5.75 Amps
Insulation Colour Blue
Wire 9/0.30mm copper
Cross-section 0.65mm² (19 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 29.4mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   2.5mm
Temperature Minus 30 to +70℃
Length of Cable 50 Metres
Approvals BS 6862-1:1971
Weight 0.64Kg
