Durite 8-way Standard Blade Fuse Box with Cover | Re: 0-234-28

£12.23  Excl. VAT
  (£14.68 Inc. VAT)
RRP:  £13.74  Excl. VAT
Initial Savings:  £1.51
Earn 12 Loyalty Points
Available


Weight:  70 g


Model:  0-234-28
Bar Code:  5056119106701
Part Number:  0-234-28
Brand:  Durite
Colour  Black/Clear
Voltage  12V/24V DC
Amperage  40A
Material  Brass/Plastic

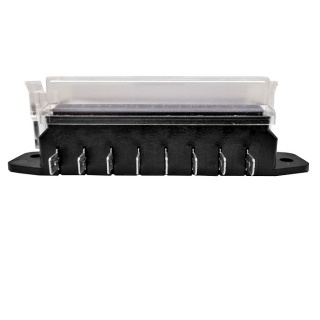

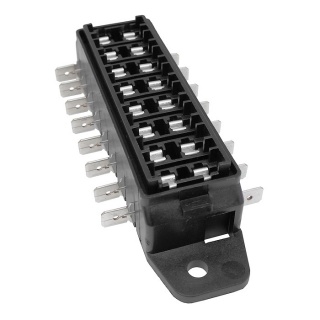

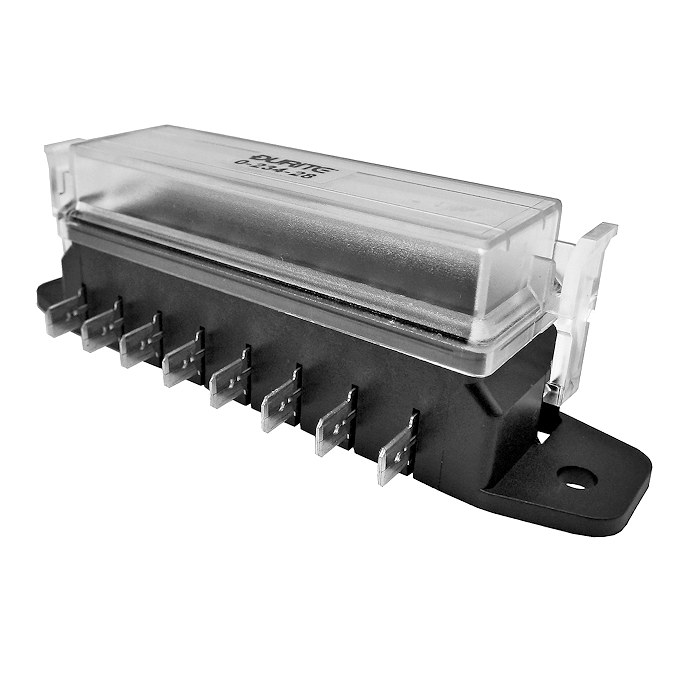

 Durite automotive eight-way standard blade or spade fusebox with side entry 6.3mm blade terminal connection.

  • 6.3mm blade terminal connections.
  • Side entry terminals for flush panel mounting.
  • Clear clip-off, clip-on holder cover.
  • Two-hole fixing with centres: 105mm.
  • Supplied without fuses.
  • Can be panel or bulkhead mounted.

Dimensions

  • Height without cover: 25mm.
  • Height including cover: 37mm.
  • Width excluding terminals: 30mm.
  • Width including terminals: 46mm.
  • Overall length including mounting lugs: 120mm.

About The Standard Eight Blade Fuse Holder

 The standard 8-way 'side entry' fuse holder fits flush to the panel when fixed, it allows cable side entry fixing via the 6.3mm terminals on either side.

 The medium-sized and most popular of the automotive blade fuse family, the standard blade fuses offer circuit load protection and have a wide variety of fuse box and inline fuse holder solutions.

Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

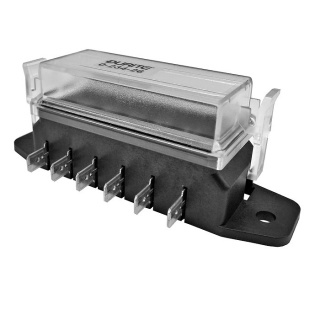

Durite 6-way Standard Blade Fuse Box with Cover | Re: 0-234-26
Durite 6-way Standard Blade Fuse Box with Cover | Re: 0-234-26

Durite six-way standard blade fuse holder. Flush mounted carrier with 6.3mm blade terminal cable connections. Supplied without fuses.

Available
 Reference: 0-234-26 £11.86   £10.56

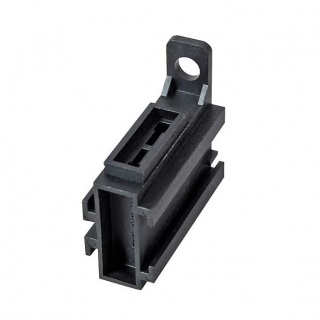

Durite Blade Fuse Holder with Bracket and Terminals | Re: 0-376-02
