Durite 6-way Standard Blade Fuse Box with Cover | Re: 0-234-26

£10.56  Excl. VAT
  (£12.67 Inc. VAT)
RRP:  £11.86  Excl. VAT
Initial Savings:  £1.30
Earn 10 Loyalty Points
Available


Weight:  60 g





Model:  0-234-26
Bar Code:  5056119106695
Part Number:  0-234-26
Brand:  Durite
Colour:  Black/Clear
Voltage:  12V/24V DC
Amperage:  40A
Material:  Brass/Plastic

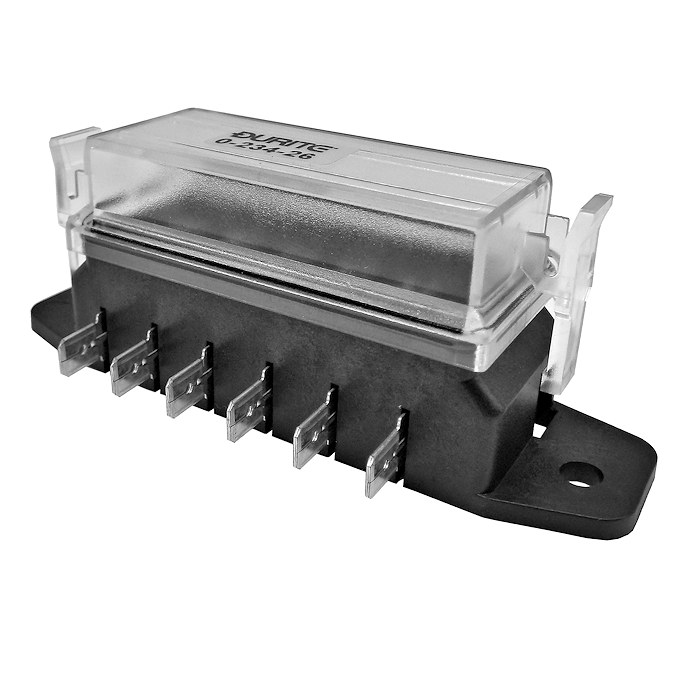

 Durite automotive six-way standard blade or spade fusebox with side entry 6.3mm blade terminal connection.

  • 6.3mm blade terminal connections.
  • Side entry terminals for flush panel mounting.
  • Clear clip-off, clip-on holder cover.
  • Two-hole fixing with centres: 88mm.
  • Supplied without fuses.
  • Can be panel or bulkhead mounted.

Dimensions

  • Height without cover: 25mm.
  • Height including cover: 37mm.
  • Width excluding terminals: 30mm.
  • Width including terminals: 46mm.
  • Overall length including mounting lugs: 100mm.

About The Standard Six Blade Fuse Holder

 The standard six-way 'side entry' fuse holder fits flush to the panel when fixed, it allows cable side entry fixing via the 6.3mm terminals on either side.

 The medium-sized and most popular of the automotive blade fuse family, the standard blade fuses offer circuit load protection and have a wide variety of fuse box and inline fuse holder solutions.
