Durite 4-Way Standard Blade Fuse Box with Cover | Re: 0-234-24

£7.30  Excl. VAT
  (£8.76 Inc. VAT)
RRP:  £8.20  Excl. VAT
Initial Savings:  £0.90
Earn 7 Loyalty Points
Available


Weight:  40 g


Model:  0-234-24
Bar Code:  5056119106688
Part Number:  0-234-24
Brand:  Durite
Colour  Black/Clear
Voltage  12V/24V DC
Amperage  40A
Material  Brass/Plastic

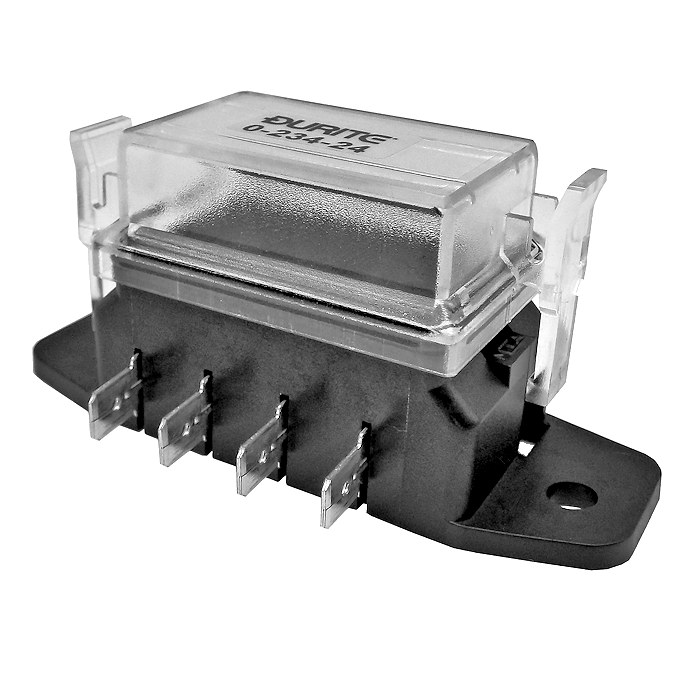

 Durite automotive four-way standard blade or spade fusebox with side entry 6.3mm blade terminal connection.

  • 6.3mm blade terminal connections.
  • Side entry terminals for flush panel mounting.
  • Clear clip-off, clip-on holder cover.
  • Two-hole fixing with centres: 65mm.
  • Supplied without fuses.
  • Can be panel or bulkhead mounted.

Dimensions

  • Height without cover: 25mm.
  • Height including cover: 37mm.
  • Width excluding terminals: 30mm.
  • Width including terminals: 46mm.
  • Overall length including mounting lugs: 80mm.

About The Standard Four Blade Fuse Holder

 The standard four-way 'side entry' fuse holder fits flush to the panel when fixed, it allows cable side entry fixing via the 6.3mm terminals on either side.

 The medium-sized and most popular of the automotive blade fuse family, the standard blade fuses offer circuit load protection and have a wide variety of fuse box and inline fuse holder solutions.
