Durite 25A Blue Continental Fuses | Re: 0-230-25

£2.17  Excl. VAT
  (£2.60 Inc. VAT)
RRP:  £2.44  Excl. VAT
Initial Savings:  £0.27
Earn 2 Loyalty Points
Available


Weight:  20 g


Model:  0-230-25
Bar Code:  5056119106534
Part Number:  0-230-25
Brand:  Durite
Colour  Blue
Voltage  12V/24V DC
Amperage  25A
Material  Thermoplastic/Copper

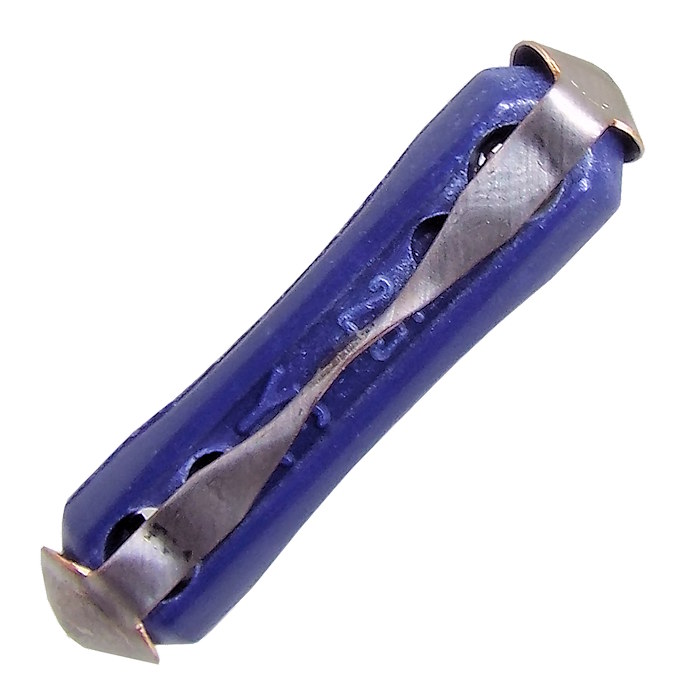

 Durite blue 25 Amps Continental fuses. Automotive festoon clip-fit fuse, commonly known as ceramic or torpedo fuses, for use on 12V-24Vdc systems.

  • Colour code: Blue.
  • 25A continuous use.
  • 50A blow rating.
  • Dimensions: 25mm in length.
  • Pack quantity: 10 and 50 pieces.

About The 25 Amps Blue Continental Fuse

 Durite blue 25A torpedo or bullet-style Continental fuses. The 25A fuses are used on 12V and 24V DC electrical systems for a continuous (always-on) application. The fuse has a festoon-style fitting and is available with a fusebox holder and carrier (0-234-00) options.

 One of the oldest fuse solutions which are still used on-road vehicles and classic cars, the yellow festoon-shaped fuse offers a 25 Amps continuous circuit load protection, and a 50 Amps blow rating. At Arc Components Ltd, we offer Continental blade fuses in four different amperages, ranging from 5A to 25A, with a 32Vdc maximum rating.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent; therefore, the fuse is required to heat up before blowing.
