Durite 16A Red Continental Fuses | Re: 0-230-16

£2.17  Excl. VAT
  (£2.60 Inc. VAT)
RRP:  £2.44  Excl. VAT
Initial Savings:  £0.27
Earn 2 Loyalty Points
Available


Weight:  20 g




  (1 Review)

Model:  0-230-16
Bar Code:  5056119106527
Part Number:  0-230-16
Brand:  Durite
Colour:  Red
Voltage:  12V/24V DC
Amperage:  16A
Material:  Thermoplastic/Copper

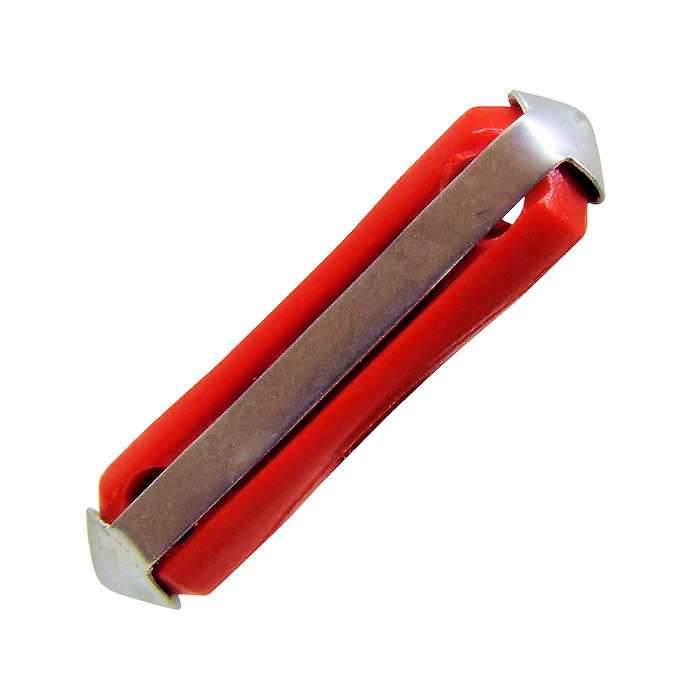

 Durite red 16 Amps Continental fuses. Automotive festoon clip-fit fuse, commonly known as ceramic or torpedo fuses, for use on 12V-24Vdc systems.

  • Colour code: Red.
  • 16A continuous use.
  • 32A blow rating.
  • Dimensions: 25mm in length.
  • Pack quantity: 10, 50 and 200 pieces.

About The 16 Amps Red Continental Fuse

 Durite red 16A torpedo or bullet-style Continental fuses. The 16A fuses are for use on 12V and 24V DC electrical systems for a continuous (always on) application. The fuse has a festoon-style fitting and is available with a fusebox holder and carrier (0-234-00) options.

 One of the oldest fuse solutions still used on-road vehicles and classic cars, the yellow festoon-shaped fuse offers 16 Amps continuous circuit load protection and a 32 Amps blow rating. At Arc Components Ltd, we offer Continental blade fuses in four different amperages, ranging from 5A to 25A, with a 32Vdc maximum rating.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent; therefore, the fuse is required to heat up before blowing.





Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

Durite 8A White Continental Fuses | Re: 0-230-08
Durite 8A White Continental Fuses | Re: 0-230-08

Durite White festoon style continental fuses. 25mm long torpedo-shaped fuse with an 8 Amps continuous rating and 16 Amps blow rating.


Available
 Reference: 0-230-08 From:  £2.17
Durite 25A Blue Continental Fuses | Re: 0-230-25
Durite 25A Blue Continental Fuses | Re: 0-230-25

Durite Blue festoon style continental fuses. 25mm long torpedo-shaped fuse with a 25 Amps continuous rating and 50 Amps blow rating.


Available
 Reference: 0-230-25 From:  £2.17
Durite 5A Yellow Continental Fuses | Re: 0-230-05
Durite 5A Yellow Continental Fuses | Re: 0-230-05

0-230-55 Durite Yellow festoon style continental fuses. 25mm long torpedo-shaped fuse with a 5 Amps continuous rating and 10 Amps blow rating.


Available
 Reference: 0-230-05 From:  £2.17

Average Rating (1 Review):

Rating:
Fuses
17 October 2019  |

Not supplied as advertised, the body is plastic not ceramic.

Was this helpful to you?  Yes  /  No

This review has not been appraised.


Response:

Hello Peter,
You are correct and the text has been corrected.
It is worth noting; that it was a recent manufacturing decision for the brand and manufacturer to switch from the ceramic to the thermoplastic housing, with a quoted "no drop in performance".
We had already removed the ceramic referencing throughout this range of fuses, but one reference of it did remain in the Attributes section. For that, we do apologise and it has been corrected, it was not our intention to deceive.
