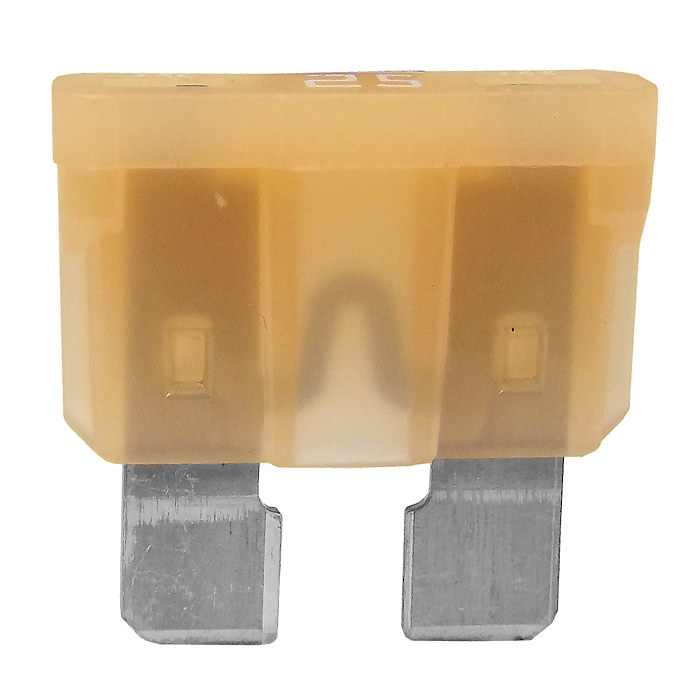

Durite 25A Neutral Standard Automotive Blade Fuse | Re: 0-375-25

£2.07 Excl. VAT

RRP ~~£2.42~~ Excl. VAT

(£2.48 Inc. VAT)

Initial Savings

£0.35

Earn 2 Loyalty Points

Select Option

Available

Model

0-375-25

Bar Code

5056119110203

Part Number

0-375-25

Brand

Durite

Colour

Neutral

Voltage

12V/24V DC

Amperage

25A

Material

Brass/Plastic

Ship Weight

15 g

Durite 12V-24Vdc 25A Neutral coloured standard blade or spade fuse, used for automotive cable and wiring as surge protection.

Neutral/Clear colour coded for easy identification.
Voltage: 12 and 24 Volts DC (32 Volts DC Maximum).
25 Amps continuous rating, 50 Amps blow rating.
Pack Quantity: 10, 50 and 200 pieces.

Dimensions

Width: 19.0mm.
Length including blade: 19.0mm.
Thickness: 5.0mm.

About The Standard 25A Spade Fuse

Durite’s standard Neutral coloured blade fuse style is an essential and compact solution to any automotive wiring and component protection system. Rated for 25 Amps continuous use, this 12V-24Vdc fuse offers reliable protection from circuit overloads. It comes in packs of 10, 50 and 200 pieces and can be used in a vehicle's fusebox or with inline holders for circuit overload protection. The 50 Amps blow rating is perfect for intermittent circuit loads, offering a higher level of surge protection for your car or commercial vehicle and its components. Durite’s standard spade fuse is medium-sized and the most popular in the Durite automotive blade fuse family.

Fuse Ratings

The rating for 25A continuous use is based on a circuit load being always on (constant), and the 50A blow rating is based on an intermittent circuit load for surge protection.

Continuous ratings for fuses are based on the fact they should blow at the specified amperage when the circuit is always on. The blow ratings for fuses are based on the intermittent circuit; therefore, the fuse is required to heat up before blowing.

Specifications

Type

Standard Automotive Blade Fuse

Voltage

12 to 24 Volts DC (32 Volts DC Maximum)

Current Rating

25 Amp - Continuous

Blow Rating (from cold)

50 Amps - Intermittent

Colour

Neutral/Clear

Weight
