Durite 25A Neutral MINI Blade or Spade Automotive Fuse | Re: 0-372-25

£3.49  Excl. VAT
  (£4.19 Inc. VAT)
RRP:  £3.92  Excl. VAT
Initial Savings:  £0.43
Earn 3 Loyalty Points
Available


Weight:  10 g





Model:  0-372-25
Bar Code:  5056119109672
Part Number:  0-372-25
Brand:  Durite
Colour:  Neutral
Voltage:  12V/24V DC
Amperage:  25A
Material:  Brass/Plastic

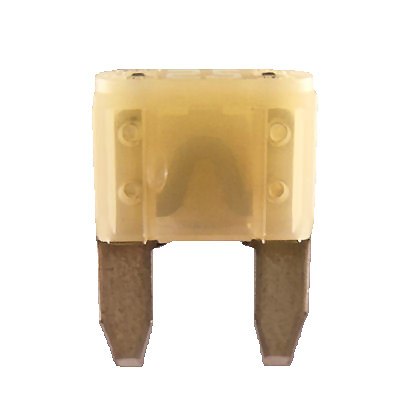

 Durite brand 25A automotive MINI blade or spade fuse.

  • Neutral colour coded for easy identification.
  • 25A continuous rating, 50A blow rating.
  • Pack quantities: 10, 50 and 200 pieces.

Dimensions

  • Width: 11.00mm.
  • Length: 16.0mm.
  • Thickness: 4.0mm.

About The Neutral 25A MINI Spade Fuse

 The smaller of the Durite automotive blade fuse family, the neutral-coloured MINI blade fuse offers 25A continuous load protection. It has a variety of uses in a vehicle's fusebox or when used with inline holders for circuit overload protection.

 The ratings for 25A continuous use are based on a circuit constant load being always-on, and the 50A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent, and therefore the fuse is required to heat up before blowing.
