ED125LB-4 Albright Battery Disconnect Switch with Key 125A - 96V Maximum
Weight: 400 g
Bar Code: DNA
Part Number: ED125LB-4
Voltage 12V to 96V DC
Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

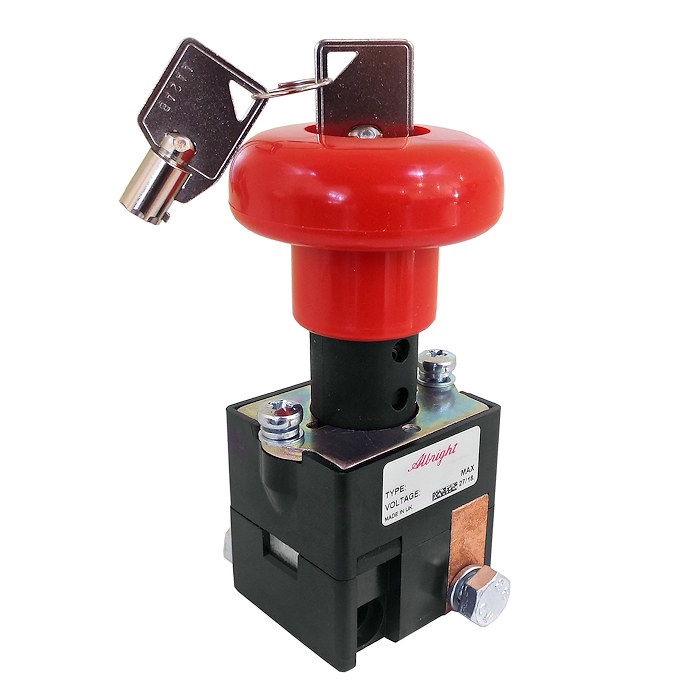

Albright 125A heavy-duty and compact emergency battery disconnect switch with a removable key and magnetic blowouts.
- Rated 125 Amps, 96Vdc maximum current.
- Single-Pole, Single-Throw.
- Two M5 fixing screws at 48mm centres.
- Two M8 hex bolts for battery cable fixing.
- It is supplied with two keys.
- 25mm diameter shaft clearance or panel hole.
- Total height, including button: 102mm.
Body Beneath Panel Dimensions
- Width: 55mm.
- Depth: 43mm.
- Depth, including cable bolts, approximately: 62mm.
About the ED125L Emergency Stop Switch
Typically used on 12, 24, 36, 48, 72, and 80 Volts DC electric vehicle systems, the lockable ED125 is a manually operated device with an over-centre spring mechanism, which provides a snap action for both opening and closing of the main contacts. The ED125 is easy to install (see drilling details) and is secured with supplied M5 Pozidrive mounting screws.
This lockable version features a key necessary for the knob to be moved from the “Off” position to the “On” position. Once in the “On” position, the key can be removed. Thereafter, the knob may be depressed to the “Off” position, where it will automatically lock and remain locked until the key is used again to unlock it.
|Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
|Application ||Uninterrupted |
|Device Type ||NC - SP - ST |
|Thermal Current Rating (Ith) ||125 Amps |
|Intermittent Current Rating ||30% Duty 230A |
40% Duty 200A
50% Duty 175A
60% Duty 160A
70% Duty 150A
|Overload Currents |
that can be Ruptured
|800A at 96V D.C. |
|Maximum Recommended |
|96V D.C. |
|Typical Voltage Drop Per Pole |
Across New Contacts At 100A
|Operating Ambient Temperature ||-40 to +60℃ |
|Weight ||377g |
