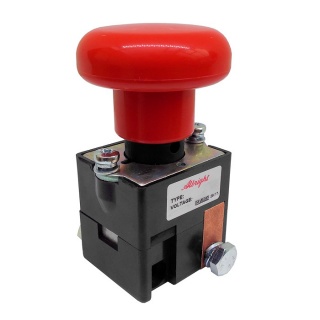

ED125B-1 Albright Emergency Battery Disconnect Switch 125A - 96V Maximum

£27.92  Excl. VAT
  (£33.50 Inc. VAT)


Earn 27 Loyalty Points
8 in stock
Immediate despatch.

Weight:  390g


Model:  ED125B-1
Part Number:  ED125B-1
Brand:  Albright
Colour:  Red/Black
Voltage:  12V to 96V DC
Amperage:  125A
Material:  Copper/Silver/Bakelite

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

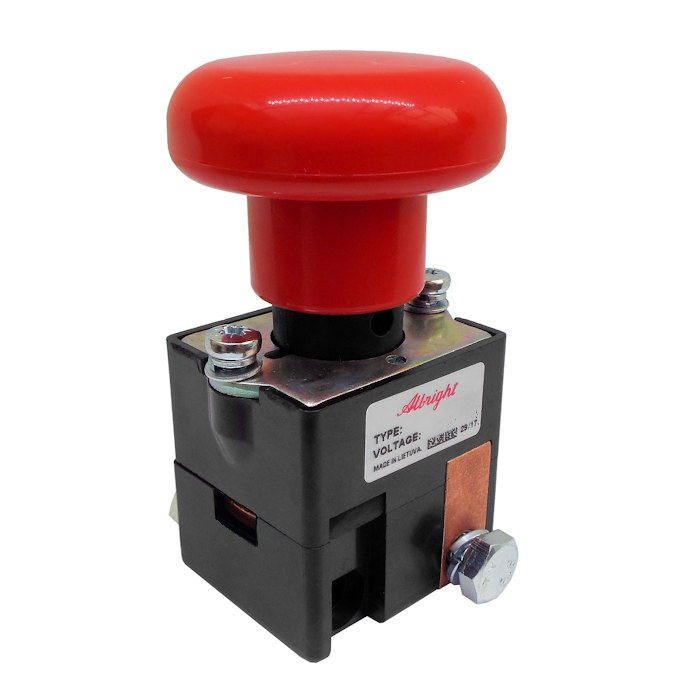

Albright heavy duty compact emergency battery disconnect switch.

  • Rated 125A, 96V dc maximum current.
  • Single pole, single throw.
  • Two M5 fixing screws at 48mm centres.
  • Two M8 hex bolts for battery cable fixing.
  • With an open housing for inspection of the contacts.

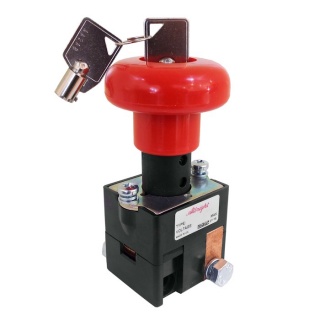

For a lockable version use ED125LB-1

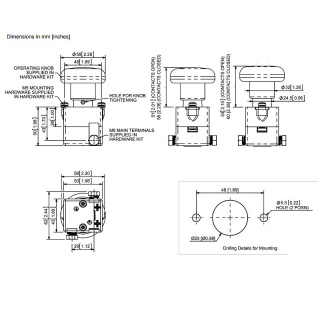

Dimensions

  • 25mm diameter shaft clearance or panel hole.
  • Total height including button: 102mm.

Body Beneath Panel Dimensions

  • Width: 55mm.
  • Depth: 43mm.
  • Depth including cable bolts approximately: 62mm.

About the ED125 Emergency Stop Switch

 Typically used on 12, 24, 36, 48, 72 and 80 volt dc electric vehicle systems, the ED125 is a manually operated device with an over-centre spring mechanism, which provides a snap action for both opening and closing of the main contacts. The ED125 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.

Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application Uninterrupted

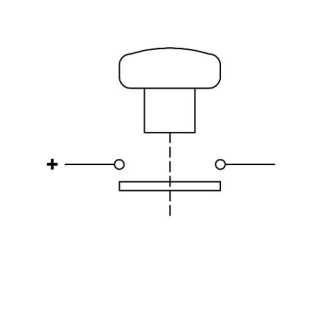

Device Type SPST Emergency Stop Switch
Thermal Current Rating (Ith) 125 amp
Intermittent Current Rating 30% Duty 230A
40% Duty 200A
50% Duty 175A
60% Duty 160A
70% Duty 150A
Overload Currents
that can be Ruptured
800A at 96V D.C.
Maximum Recommended
Contact Voltage
96V D.C.
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 300g
