ED125B-4 Albright Emergency Battery Disconnect Switch 125A - 96V Maximum
Weight: 390 g
Bar Code: DNA
Part Number: ED125B-4
Voltage 12V to 96V DC
Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

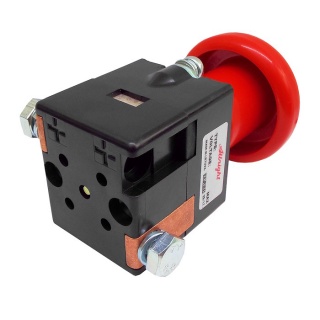

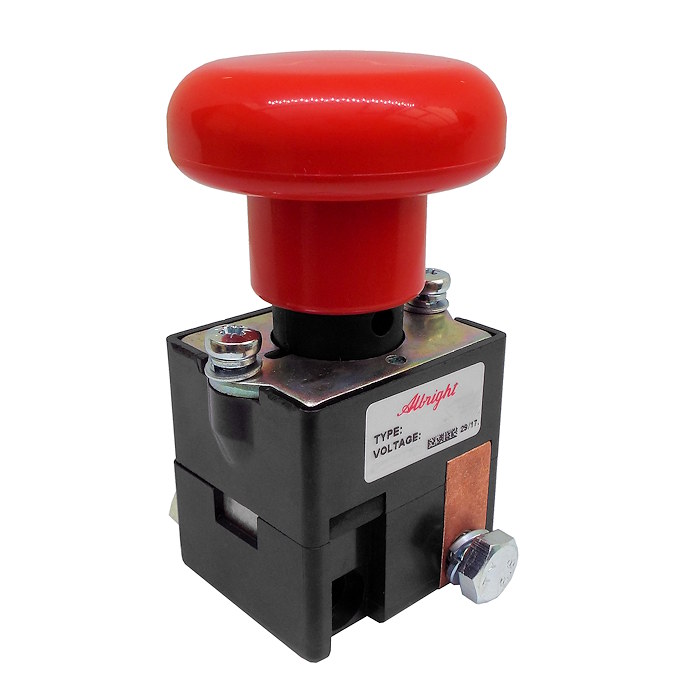

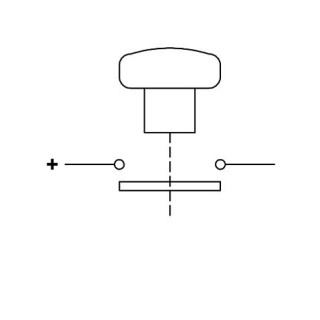

Albright 125A heavy-duty compact emergency battery disconnect switch with magnetic blowouts.
- Rated 125A, 96Vdc maximum current.
- Single-Pole, Single-Throw (SPST) panic switches, suitable for 12V, 24V, 36V, 48V, 72V, 80V and up to 96Vdc electrical systems.
- Two M5 fixing screws at 48mm centres.
- Two M8 hex bolts for battery cable fixing.
- 25mm diameter shaft clearance or panel hole.
- Total height, including button: 102mm.

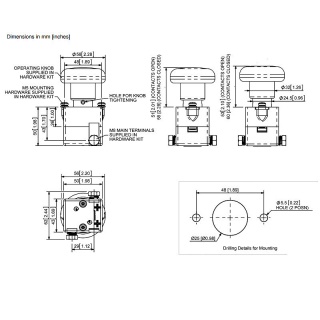

Body Beneath Panel Dimensions
- Width: 55mm.
- Depth: 43mm.
- Depth, including cable bolts, approximately: 62mm.
About the ED125 Emergency Stop Switch
Typically used on 12, 24, 36, 48, 72, and 80 Volts DC electric vehicle systems, the ED125 is a manually operated device with an over-centre spring mechanism, which provides a snap action for both opening and closing of the main contacts. The ED125 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.
|Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
|Application ||Uninterrupted |
|Device Type ||NC - SP - ST |
|Thermal Current Rating (Ith) ||125 Amps |
|Intermittent Current Rating ||30% Duty 230A |
40% Duty 200A
50% Duty 175A
60% Duty 160A
70% Duty 150A
|Overload Currents |
that can be Ruptured
|800A at 96V D.C. |
|Maximum Recommended |
|96V D.C. |
|Typical Voltage Drop Per Pole |
Across New Contacts At 100A
|Operating Ambient Temperature ||-40 to +60℃ |
|Weight ||300g |
