ED125L-1 Albright Emergency Battery Disconnect Switch with Key 125A

£40.02  Excl. VAT
  (£48.02 Inc. VAT)


Earn 40 Loyalty Points
Pre-order
Despatch: 6 to 8 Weeks

Weight:  400g


Model:  ED125L-1
Part Number:  ED125L-1
Brand:  Albright
Colour:  Red/Black
Voltage:  12V to 48V DC
Amperage:  125A
Material:  Copper/Silver/Bakelite

Pre-order and back-ordering are available with a 6 to 8 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

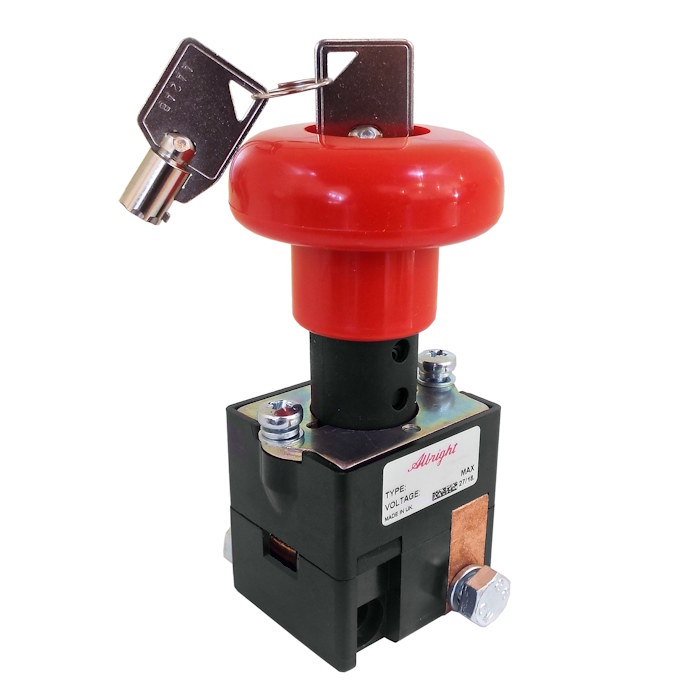

Albright heavy duty and compact, emergency battery disconnect switch with removable key.

  • Rated 125A at 48V dc maximum current.
  • Single pole, single throw.
  • Two M5 fixing screws at 48mm centres.
  • Two M8 hex bolts for battery cable fixing.
  • Supplied with 2 keys.
  • With an open housing for inspection of the contacts.

Dimensions

  • 25mm diameter shaft clearance or panel hole.
  • Total height including button: 102mm.

Body Beneath Panel Dimensions

  • Width: 55mm.
  • Depth: 43mm.
  • Depth including cable bolts approximately: 62mm.

About the ED125L Emergency Stop Switch

 Typically used on 12 volt, 24 volt and 48 volt dc electric vehicle systems, the lockable ED125 is a manually operated device with an over-centre spring mechanism, which provides a snap action for both opening and closing of the main contacts. The ED125 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.

 This lockable version features a key which is necessary for the knob to be moved from the “Off” position to the “On” position. Once in the “On” position, the key can be removed. Thereafter, the knob may be depressed to the “Off” position, where it will automatically lock and remain locked until the key is used again to unlock it.

Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application Uninterrupted
Device Type SPST Emergency Stop Switch with Key
Thermal Current Rating (Ith) 125 amp
Intermittent Current Rating 30% Duty 230A
40% Duty 200A
50% Duty 175A
60% Duty 160A
70% Duty 150A
Overload Currents
that can be Ruptured
800A at 48V D.C.
Maximum Recommended
Contact Voltage
48V D.C.
Typical Voltage Drop Per Pole
Across New Contacts At 100A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 377g
