ED125-4 Albright Emergency Battery Disconnect Switch 125A
Weight: 370 g
Model: ED125-4
Bar Code: DNA
Part Number: ED125-4
Brand: Albright
Colour Red/Black
Voltage 12V to 48V DC
Amperage 125A
Material Copper/Silver/Bakelite
| Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

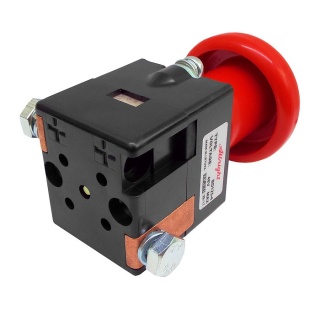

Albright 125A heavy-duty compact emergency battery disconnect switch.
- Rated 125 Amps, 48Vdc maximum current.

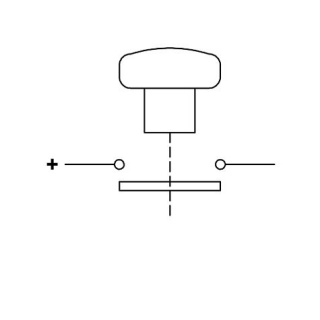

- Single-Pole, Single-Throw (SPST).
- Two M5 fixing screws at 48mm centres.
- Two M8 hex bolts for battery cable fixing.

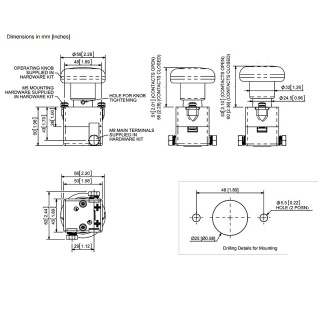

Dimensions
- 25mm diameter shaft clearance or panel hole.
- Total height including button: 102mm.
Body Beneath Panel Dimensions
- Width: 55mm.
- Depth: 43mm.
- Depth, including cable bolts, is approximate: 62mm.
About the ED125 Emergency Stop Switch
Typically used on 12 Volts, 24 Volts, and 48 Volts DC electric vehicle systems, the ED125 is a manually operated device with an over-centre spring mechanism, which provides a snap action for both opening and closing of the main contacts. The ED125 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Application | Uninterrupted |
| Device Type | NC - SP - ST |
| Thermal Current Rating (Ith) | 125 Amps |
| Intermittent Current Rating | 30% Duty 230A
40% Duty 200A
50% Duty 175A
60% Duty 160A
70% Duty 150A |
Overload Currents
that can be Ruptured | 800A at 48V D.C. |
Maximum Recommended
Contact Voltage | 48V D.C. |
Typical Voltage Drop Per Pole
Across New Contacts At 100A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 300g |
