DC88-5 Albright 36V DC Motor-reversing Solenoid Contactor Intermittent

£90.70  Excl. VAT
  (£108.84 Inc. VAT)
 Excl. VAT

Earn 90 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.04 kg


Model:  DC88-5
Bar Code:  DNA
Part Number:  DC88-5
Brand:  Albright
Colour  Black
Voltage  36V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

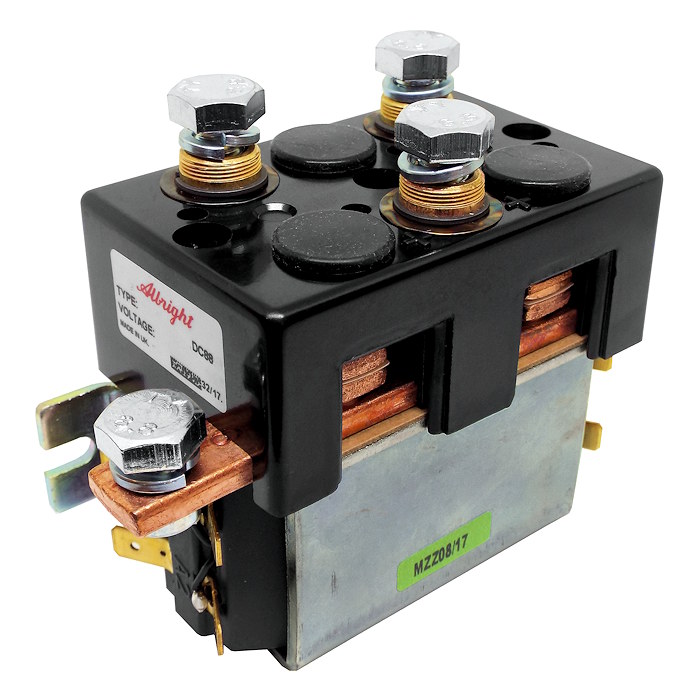

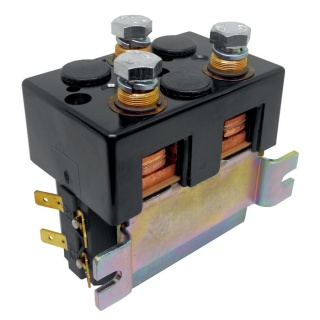

 Albright 36 Volts DC motor reversing solenoid contactor, intermittent.

  • The DC88-5 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • The DC88 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.

About The DC88-5 Motor Reversing Solenoid

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

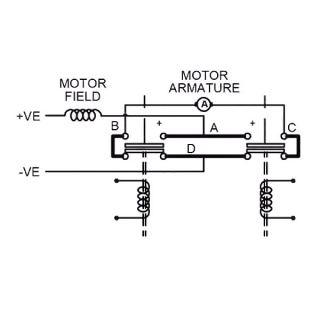

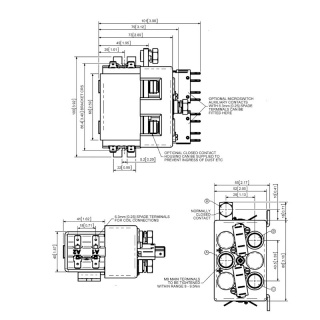

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. This version of the DC88 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Replacement Component Part Numbers

  • 2070-360A: Top cover and stud contacts.
  • 2070-14J: Moving contact.
  • 2070-326: Long bar fixed contact.

Specifications

Device Type DC88-5 Monoblock SPDT NO
Voltage 36V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 73
Pull-In Voltage (V) 24.0 Maximum
Drop Out Voltage (V) 9.0 Maximum
Coil Power Dissipation (W) 17.75
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Normally Open: Less than 40mV
Normally Closed: Less than 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 1.04kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A



Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.


Related Products

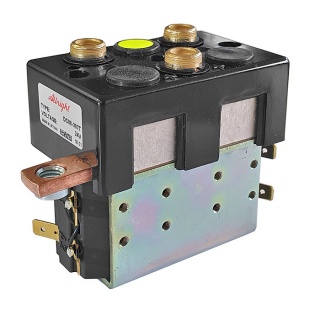

DC88-267L Albright 24V DC Motor-reversing Solenoid Contactor Intermittent
DC88-267L Albright 24V DC Motor-reversing Solenoid Contactor Intermittent

Albright DC88-267L 24 Volts SPDT contactor with large tips and M4 tapped frame, intermittent. 24Vdc 100 Amps solenoid for Direct Current.

5 in stock
 Reference: DC88-267L £90.70
DC88-286L Albright 12V DC Motor-reversing Solenoid Contactor Intermittent
DC88-286L Albright 12V DC Motor-reversing Solenoid Contactor Intermittent

Albright DC88-286L 12 Volts SPDT contactor with large tips and M4 tapped frame, intermittent. 12Vdc 100 Amps solenoid for Direct Current.

3 in stock
 Reference: DC88-286L £88.57

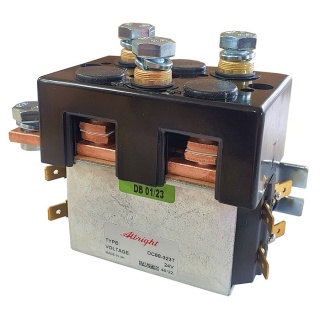

DC88-307T Albright 24V DC Motor-reversing Solenoid Contactor Intermittent
DC88-307T Albright 24V DC Motor-reversing Solenoid Contactor Intermittent

Albright DC88-307T 24 Volts SPDT contactor with textured tips, shields and M4 tapped frame, intermittent. 24Vdc 100 Amps solenoid for DC loads.

Pre-order
Despatch: 9 to 12 WeeksReference: DC88-307T £87.70
DC88-404P Albright 36V DC Motor-reversing Solenoid 100A IP66 - Intermittent
DC88-404P Albright 36V DC Motor-reversing Solenoid 100A IP66 - Intermittent

Albright DC88-404P 36 Volts DC IP66 SPDT contactor, intermittent. 36Vdc 100 Amps sealed switch solenoid for Direct Current loads.

Pre-order
Despatch: 9 to 12 WeeksReference: DC88-404P £85.36
DC88-492L Albright 12V DC Motor-reversing Solenoid Contactor Intermittent
DC88-492L Albright 12V DC Motor-reversing Solenoid Contactor Intermittent  (1)

Albright DC88-492L 12 Volts SPDT contactor with large tips, shields and M4 tapped frame, intermittent. 12Vdc 100 Amps Direct Current solenoid.

2 in stock
 Reference: DC88-492L £93.05

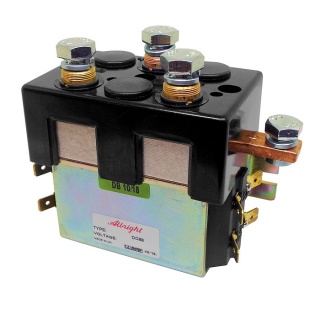

DC88-533 Albright 36V DC Motor-reversing Solenoid Contactor - Continuous
