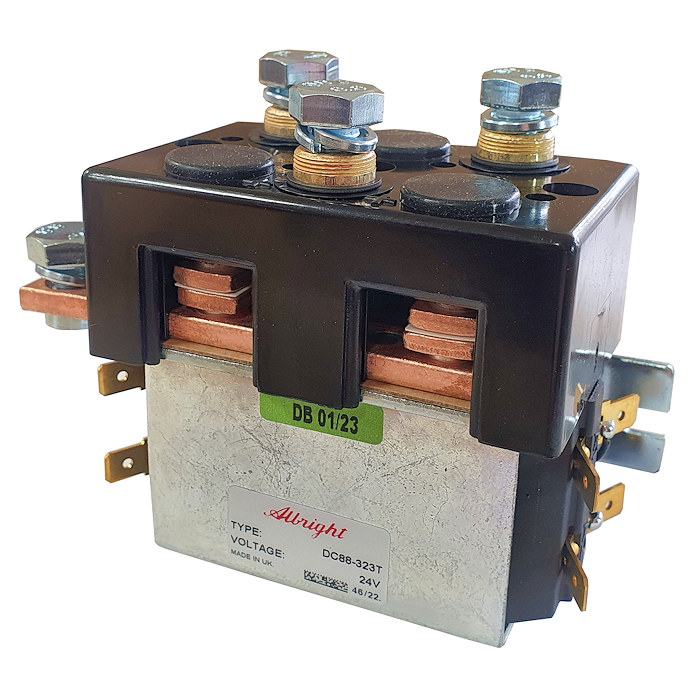

DC88-323T Albright 24V DC Motor-reversing Solenoid Contactor Intermittent

£89.86  Excl. VAT
  (£107.83 Inc. VAT)
 Excl. VAT

Earn 89 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.04 kg





Model:  DC88-323T
Bar Code:  DNA
Part Number:  DC88-323T
Brand:  Albright
Colour  Black
Voltage  24V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

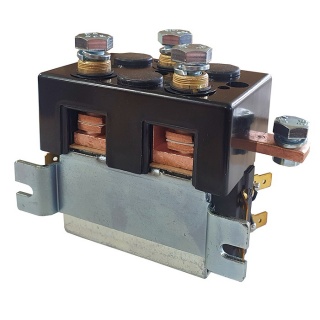

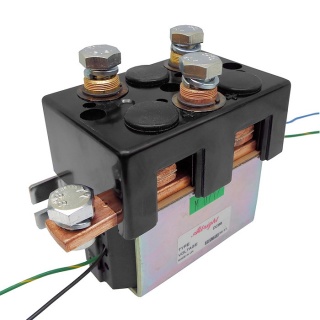

 Albright 24 Volts DC motor reversing solenoid contactor with textured tips and integral bracket, intermittent.

  • The DC88-323T contactor has been designed for direct current loads, particularly motors used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
  • The DC88 is a monoblock construction, resulting in a neat compact design compatible with modern electronic control systems.
  • Textured tip version contactor.
  • Integral bracket.

About The DC88-323T Motor Reversing Solenoid

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

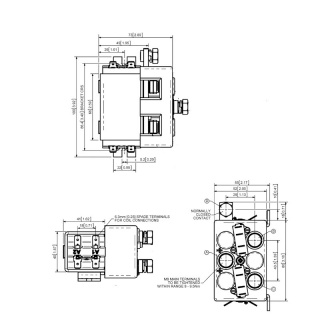

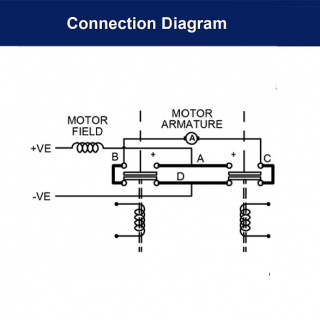

 The main contact circuit, designed for motor reversing, has a built-in failsafe so that if both coils are energised simultaneously, the contact arrangement is an open circuit. Coil connections are by means of 6.3mm spades, and mounting is via M4 screws on a panel fixture or using an additional bracket (e.g. part number: 2070-41) and can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - DT
Voltage 24V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 29
Pull-In Voltage (V) 15.0 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 19.86
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: Less than 40mV
NC: Less than 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 1.04kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
