DC88-1 Albright 24V DC Motor-reversing Solenoid Contactor Intermittent

£90.70  Excl. VAT
  (£108.84 Inc. VAT)
 Excl. VAT

Earn 90 Loyalty Points
1 in stock


Weight:  1.04 kg





Model:  DC88-1
Bar Code:  DNA
Part Number:  DC88-1
Brand:  Albright
Colour  Black
Voltage  24V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

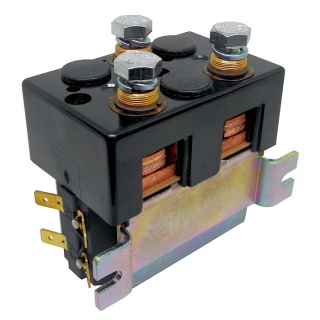

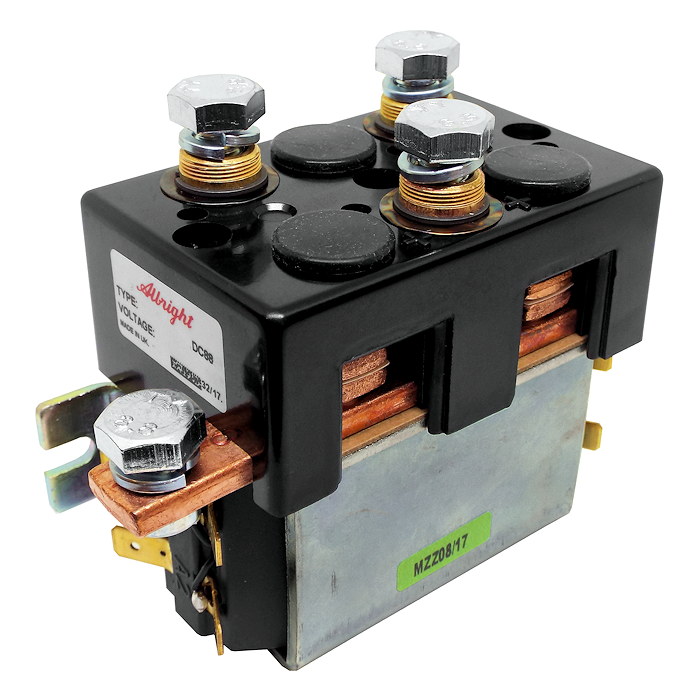

 Albright 24 Volts DC motor-reversing solenoid contactor, intermittent.

  • The DC88-1 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
  • The DC88 is a monoblock construction, resulting in a neat compact design that is compatible with modern electronic control systems.

Replacement Component Part Numbers

  • 2070-360A: Top cover and stud contacts.
  • 2070-14J: Moving contact.
  • 2070-326: Long bar fixed contact.

About The DC88-1 Motor Reversing Solenoid

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

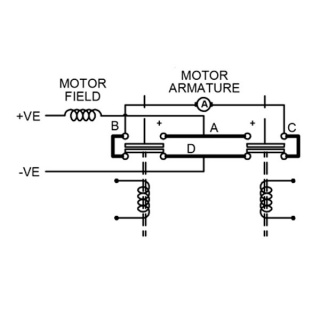

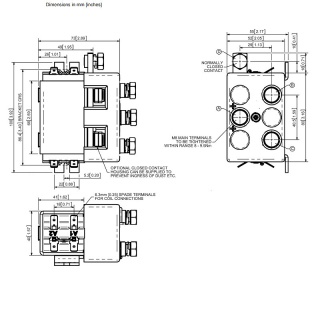

 The main contact circuit, designed for motor reversing, has a built-in failsafe so that if both coils are energised simultaneously, the contact arrangement is an open circuit. This version of the DC88 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via the integral bracket formed into the coil housing case. Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - DT
Voltage 24V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 29
Pull-In Voltage (V) 14.5 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 19.86
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: < 40mV
NC: < 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 1.04kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
