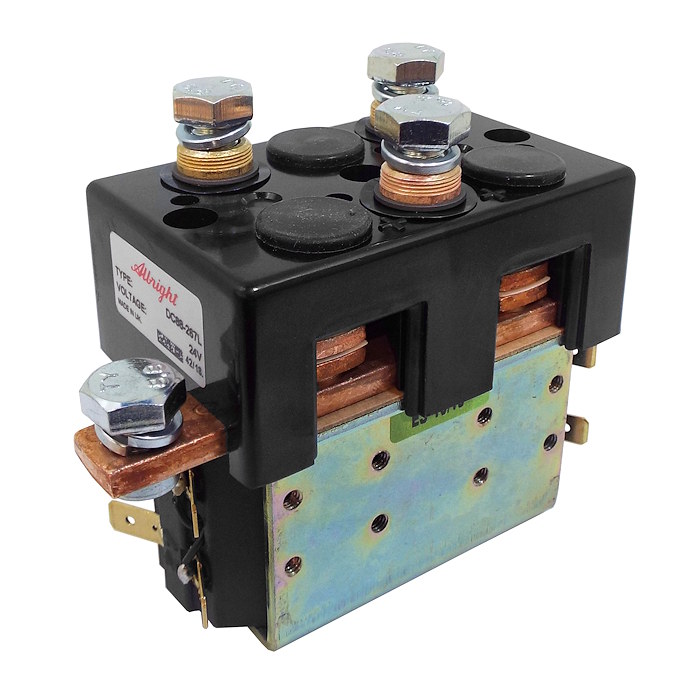

DC88-267L Albright 24V DC Motor-reversing Solenoid Contactor Intermittent

£90.70  Excl. VAT
  (£108.84 Inc. VAT)
 Excl. VAT

Earn 90 Loyalty Points
1 in stock


Weight:  1.04 kg





Model:  DC88-267L
Bar Code:  DNA
Part Number:  DC88-267L
Brand:  Albright
Colour:  Black
Voltage:  24V DC
Amperage:  100A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


Albright 24 Volts DC motor-reversing solenoid contactor, intermittent.

  • The DC88-267L series of contactors (with large tips) have been designed for direct current loads, particularly motors used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
  • The DC88 is a monoblock construction, resulting in a neat compact design compatible with modern electronic control systems.

Associated Products

  • 2070-41 Albright SW88 DC88 Solenoid Mounting Bracket
  • 2072-447 Pair of Albright DC88 Solenoid Mounting Brackets

About The DC88-267L Motor Reversing Solenoid

Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously, the contact arrangement is an open circuit. Coil connections are by means of 6.3mm spades, and mounting is via M4 screws on a panel fixture or using an additional bracket (e.g. part number: 2070-41) and can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - DT
Voltage 24V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 29
Pull-In Voltage (V) 14.5 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 19.86
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: < 40mV
NC: < 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 1.04kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
