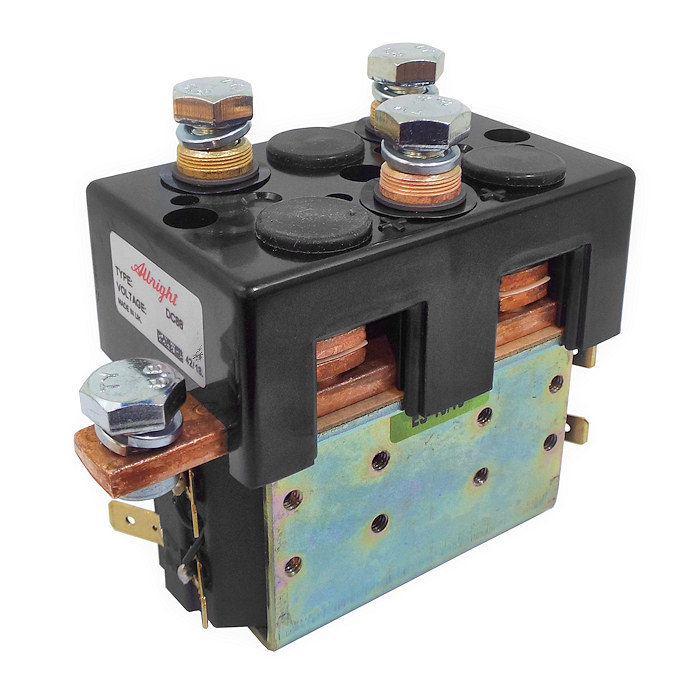

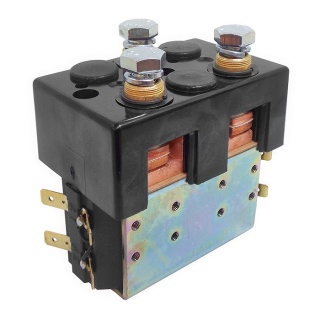

Albright 12 Volts DC motor-reversing solenoid contactor, intermittent.
- The DC88-286L series of contactors (with large tips) are designed for direct current loads, particularly motors used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
- They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
- They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
- The DC88 is a monoblock construction, resulting in a neat compact design compatible with modern electronic control systems.
- 2070-41 Albright SW88 DC88 Solenoid Mounting Bracket
- 2072-447 Pair of Albright DC88 Solenoid Mounting Brackets
About The DC88-286L Motor Reversing Solenoid
Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

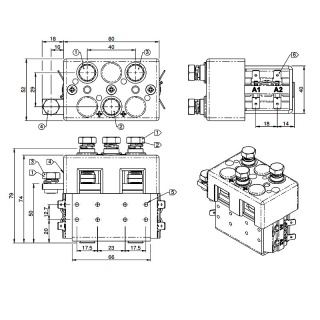

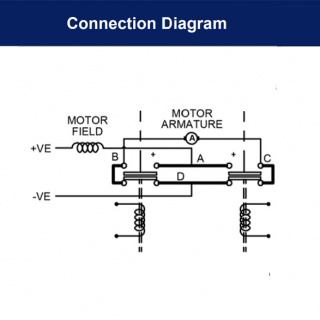

The main contact circuit, designed for motor reversing, has a built-in failsafe so that if both coils are energised simultaneously, the contact arrangement is an open circuit. Coil connections are by means of 6.3mm spades, and mounting is via M4 screws on a panel fixture or using an additional bracket (e.g. part number: 2070-41) and can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.
|Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
|Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
|Device Type ||NO - SP - DT |
|Voltage ||12V D.C. |
|Coil Type ||Intermittent |
|Amps ||100A |
|Coil Resistance (Ohms) ||9 |
|Pull-In Voltage (V) ||7.5 Max. |
|Drop Out Voltage (V) ||3.5 Max. |
|Coil Power Dissipation (W) ||16.00 |
|Typical Pull-In Time ||20ms |
|Typical Voltage Drop Per Pole |
Across New Contacts At 100A
|NO: < 40mV |
NC: < 50mV
|Operating Ambient Temperature ||-40 to +60℃ |
|Guideline Weight ||1.04kg |
|Application ||Uninterrupted |
|Thermal Current Rating ||100A |
|Intermittent Current Rating: |
|30% Duty ||185A |
|40% Duty ||160A |
|50% Duty ||140A |
|60% Duty ||130A |
|70% Duty ||120A |
