DC88-538L Albright 12V DC Motor Reversing Solenoid Contactor Intermittent

£83.08  Excl. VAT
  (£99.70 Inc. VAT)
 Excl. VAT

Earn 83 Loyalty Points
Pre-order
Despatch: 9 to 12 Weeks

Weight:  1.04 kg

  (1 Review)

Model:  DC88-538L
Bar Code:  DNA
Part Number:  DC88-538L
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  100A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

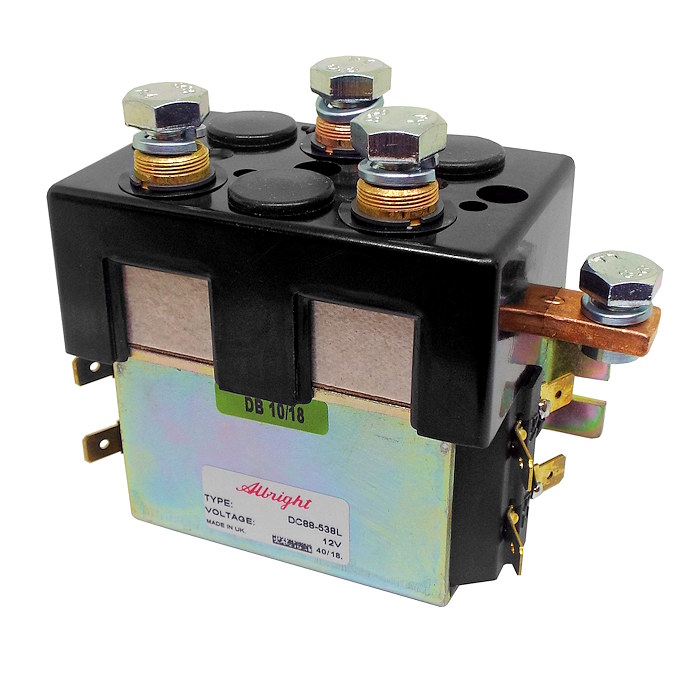

 Albright 12 Volts DC motor reversing solenoid contactor, intermittent.

  • The DC88-538L series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
  • They have double-breaking main contacts with silver alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
  • They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
  • The DC88 is a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems.

About The DC88-538L Motor Reversing Solenoid

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

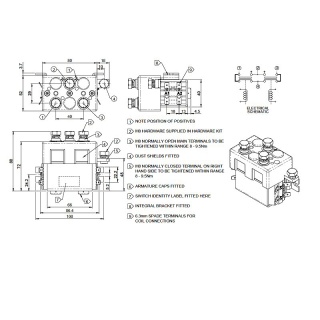

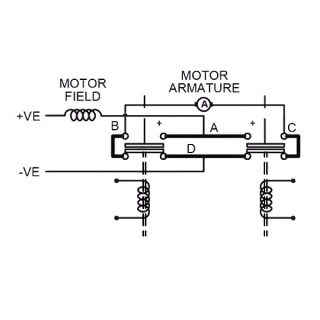

 The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is an open circuit. Coil connections are by means of 6.3mm spades and mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

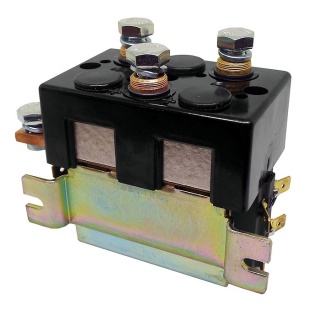

 The unit has an integral bracket with no tapped holes. The top cover is reversed with the T contact and positive contact next to the bracket. Bar contact is on the right.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - DT
Protection Dust Shields
Voltage 12V D.C.
Coil Type Intermittent
Amps 100A
Coil Resistance (Ohms) 7
Pull-In Voltage (V) 8.0 Max.
Drop Out Voltage (V) 3.0 Max.
Coil Power Dissipation (W) 20.57
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
NO: < 40mV
NC: < 50mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 1.04kg
Application Uninterrupted
Thermal Current Rating 100A
Intermittent Current Rating:
30% Duty 185A
40% Duty 160A
50% Duty 140A
60% Duty 130A
70% Duty 120A
