0-950-05 30m x 10.00mm² Red 70A Auto Single-core Cable

£85.30  Excl. VAT
  (£102.36 Inc. VAT)
RRP:  £95.84  Excl. VAT
Initial Savings:  £10.54
Earn 85 Loyalty Points
Available


Weight:  4.26 kg





Model:  0-950-05
Bar Code:  5056119133370
Part Number:  0-950-05
Brand:  Durite
Colour  Red
Voltage  12V/24V DC
Amperage  70A
Material  Copper/PVC


 Durite 70A Red standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 10mm² (7AWG) Red.
  • 70 Amps single-core automotive cable and vehicle wiring.
  • 80 copper strands at 0.40mm.
  • Outside diameter: 7.5mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 30m.

About the 0-950-05 10.00mm² Red PVC Electric Cable

 Arc Components Limited presents the 0-950-05, Durite's heavy-duty 70A Red automotive cable, ideal for your vehicle's connection to electrical equipment with a higher load requirement.

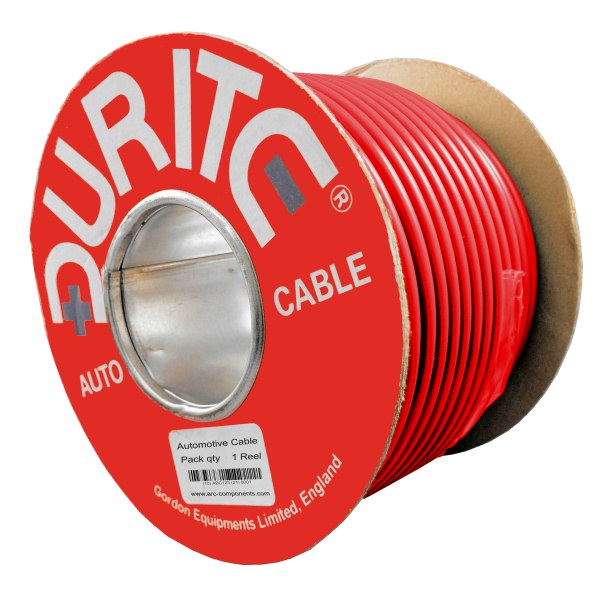

 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 10.0mm² (7 AWG) and features 80 strands of 0.40mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 7.5mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 70 Amps.

 The Durite 0-950-05 is commonly used as a Positive (+) conductor wire on high-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core standard automotive wiring
Current Rating 70.0 Amps
Insulation Colour Red
Wire 80/0.40mm copper
Cross-section 10.00mm² (7 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 1.8mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   7.5mm
Temperature Minus 30 to +70℃
Length of Cable 30 Metres
Approvals BS 6862-1:1971
Weight 4.26Kg
