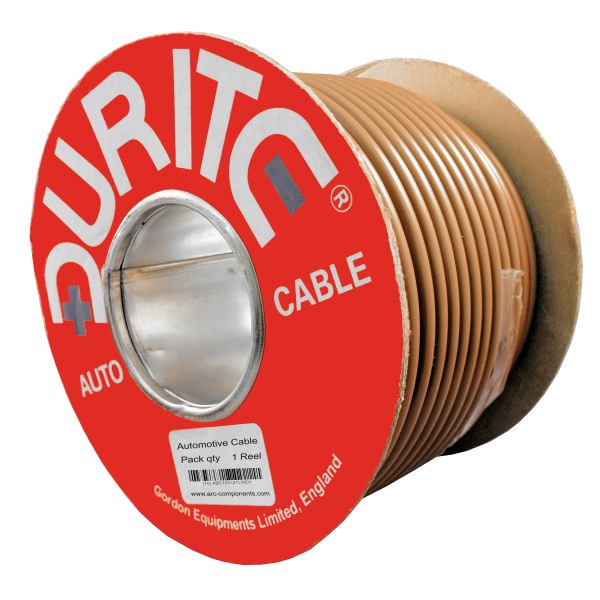

0-949-03 30m x 7.00mm˛ Brown 50A Auto Single-core Cable
Weight: 2.80 kg
Bar Code: 5056119133332
Part Number: 0-949-03
Voltage 12V/24V DC
Durite 50A Brown standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 7.00mm² (9AWG) Brown.
- 50 Amps single-core automotive cable and vehicle wiring.
- 97 copper strands at 0.30mm.
- Outside diameter: 6.2mm.
- Manufactured to BS6862-1:1971.
- Roll length: 30m.
About the 0-949-03 7.00mm² Brown PVC Electric Cable
Arc Components Limited presents the 0-949-03, Durite's medium to heavy-duty 50A Brown automotive cable, ideal for your vehicle's connection to electrical equipment with a higher load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 7mm² (9 AWG) and features 97 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 6.2mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 50 Amps.
The Durite 0-949-03 is commonly used as a conductor wire on higher amperage 12V-24V electrical equipment and wiring looms.
|Type ||Single-core standard automotive wiring |
|Current Rating ||50.0 Amps |
|Insulation Colour ||Brown |
|Wire ||97/0.30mm copper |
|Cross-section ||7.00mm² (9 AWG) |
|Voltage ||For 12 and 24 Volts DC systems (100 Volts DC Max.) |
|Resistance ||2.79mΩ/m at 20℃ |
|Insulation ||Hard-grade PVC offers good resistance to abrasion and cut-through. |
|Overall Diameter ||6.2mm |
|Temperature ||Minus 30 to +70℃ |
|Length of Cable ||30 Metres |
|Approvals ||BS 6862-1:1971 |
|Weight ||2.8Kg |
