0-948-03 30m x 8.50mm² Brown 60A Auto Single-core Cable

0-948-03 30m x 8.50mm² Brown 60A Auto Single-core Cable
0-948-03 30m x 8.50mm² Brown 60A Auto Single-core Cable
£69.70 Excl. VAT
RRP £81.66 Excl. VAT
(£83.64 Inc. VAT)
Initial Savings
£11.96
Earn 69 Loyalty Points

Available
Model
0-948-03
Bar Code
5056119133301
Part Number
0-948-03
Brand
Durite
Colour
Brown
Voltage
12V/24V DC
Amperage
60A
Material
Copper/PVC
 Intrastat HS Code  8544499390
Ship Weight
3.60 kg

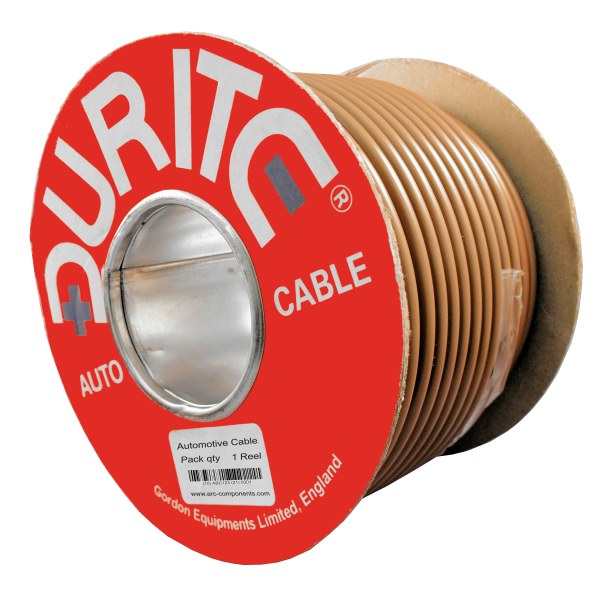

 Durite 60A Brown standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 8.50mm² (8AWG) Brown.
  • 60 Amps single-core automotive cable and vehicle wiring.
  • 120 copper strands at 0.30mm.
  • Outside diameter: 7.0mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 30m.

About the 0-948-03 8.50mm² Brown PVC Electric Cable

 Arc Components Limited presents the 0-948-03, Durite's medium to heavy-duty 60A Brown automotive cable, ideal for your vehicle's connection to electrical equipment with a higher load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 8.5mm² (8 AWG) and features 120 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 7mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 60 Amps.

 The Durite 0-948-03 is commonly used as a  conductor wire on higher amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type
Single-core standard automotive wiring
Current Rating
60 Amps
Insulation Colour
Brown
Wire
120/0.30mm copper
Cross-section
8.50mm² (8 AWG)
Voltage
For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance
2.2mΩ/m at 20 degrees C
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
7.0mm
Temperature
Minus 30 to +70 degrees C
Length of Cable
30 Metres
Approvals
BS 6862-1:1971
Weight
3.6Kg
