0-933-11 100m x 2.00mm² Pink 25A Auto Single-core Cable

£52.21  Excl. VAT
  (£62.65 Inc. VAT)
RRP:  £58.66  Excl. VAT
Initial Savings:  £6.45
Earn 52 Loyalty Points
Available


Weight:  2.28 kg





Model:  0-933-11
Bar Code:  5056119132069
Part Number:  0-933-11
Brand:  Durite
Colour:  Pink
Voltage:  12V/24V/36V/48V DC
Amperage:  25A
Material:  Copper/PVC


 Durite Pink 25 Amps 2mm² single-core thin wall PVC sheathed auto electric cable.

  • 2.00mm² (14AWG) Pink.
  • 25A single-core automotive cable and vehicle wiring.
  • 28 copper strands at 0.30mm.
  • Outside diameter: 2.8mm.
  • Manufactured to ISO 06722/4.
  • Roll length: 100m.

About the 0-933-11 2.00mm² Pink Thin Wall Electric Cable

 Arc Components Limited presents the 0-933-11, Durite's low to medium-duty 25A Pink automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/medium load requirement.

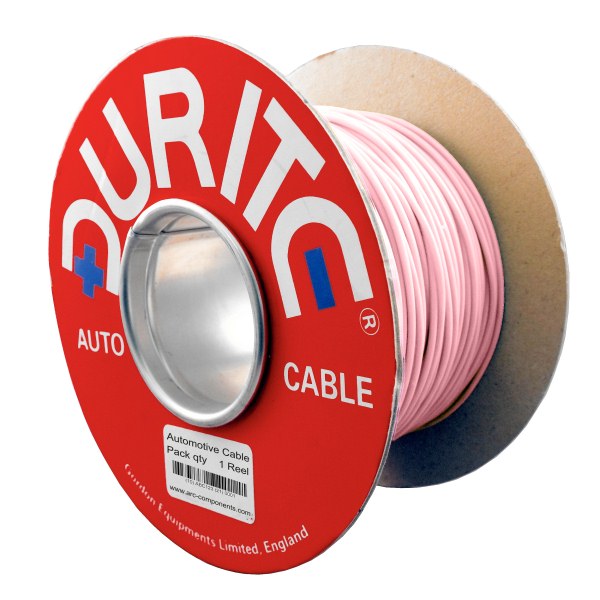

 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.8mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 25 Amps.

 Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 25 Amps
Insulation Colour Pink
Wire 28/0.30mm copper
Cross-section 2.00mm² (14 AWG)
Voltage 60 Volts DC Max.
Resistance 9.4mΩ/m at 20℃
Insulation Hard grade PVC to BS6746 Type 5.
Overall Diameter   2.8mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 100 Metres
Approvals ISO6722/4
Weight 2.28Kg
