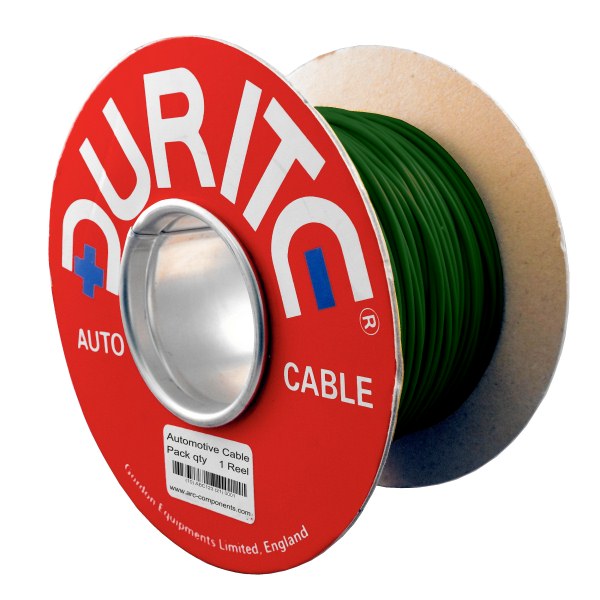

0-933-04 100m x 2.00mm˛ Green 25A Auto Single Core Cable

£48.54  Excl. VAT
  (£58.25 Inc. VAT)
RRP:  £55.79  Excl. VAT
Savings before Cart:  £7.25
Earn 48 Loyalty Points
Available


Weight:  2.28 kg


Model:  0-933-04
Bar Code:  5056119131994
Part Number:  0-933-04
Brand:  Durite
Colour  Green
Amperage  25A
Material  Copper/PVC


 Single core, 2mm² thin wall automotive green PVC sheathed electric cable.

  • Roll length 100m.
  • 2.00mm² green.
  • 25A automotive single-core cable.
  • 28 strands 0.30mm.
  • Outside diameter: 2.8mm.
  • To ISO 06722-4.

About The 2mm² Green Thin Wall Electric Cable

 100 Metre reel of 25A green auto electrical thin wall cable. Used for light current loads, the 2mm² thin wall automotive wire has a 28 strands, 0.30mm construction, with a current load capability to a maximum of 25A continuous. With a reduced but harder PVC coating, thin wall cabling is now standard use for wiring looms and trees with modern vehicle manufacturers. The Durite range of thin wall electric cable, manufactured and tested to ISO 6722-4 industry standards, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils.

 Used as a conductor wire on low amperage electrical equipment and wiring looms.

Specifications

Type Single core thin wall cable
Current Rating 25 Amps
Insulation Colour Green
Wire 28/0.30mm copper
Cross section 2.00mm²
Voltage 60 Volts DC maximum
Resistance 9.4mΩ/m at 20℃
Insulation Hard grade PVC to BS6746 Type 5.
Overall Diameter   2.8mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 100 Metres
Approvals ISO6722/4
Weight 2.28Kg
